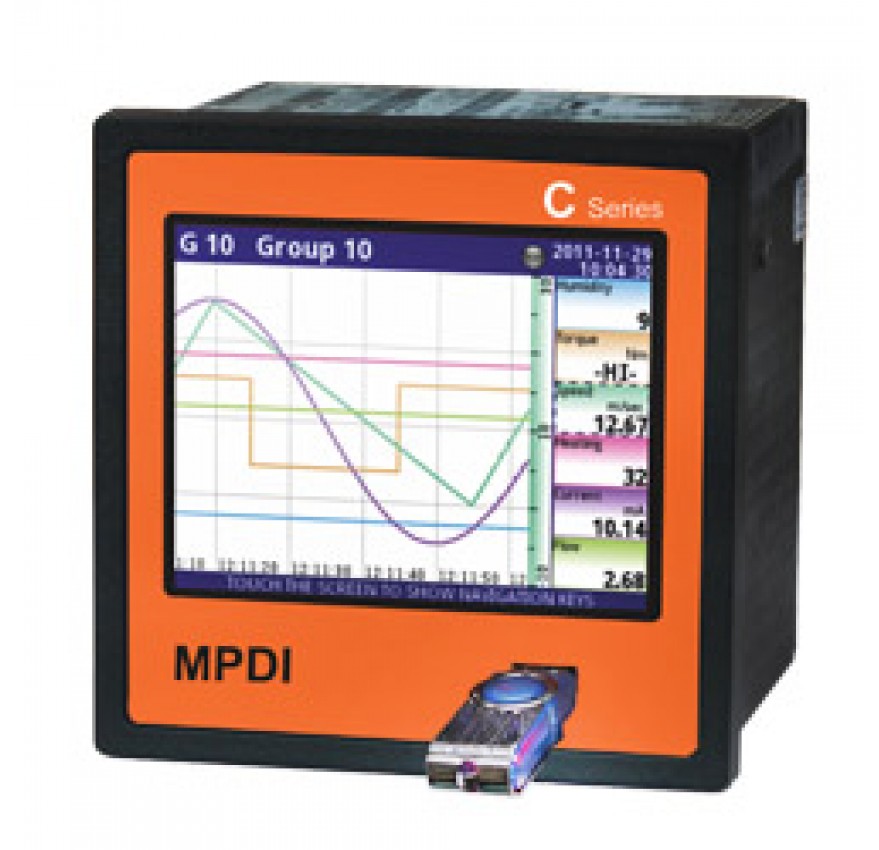

Measure Control Data Logger | MPDI C-Series

Measure Control Data Logger | MPDI C-Series



Order Catalog

Description

MPDI C - Series is a powerful and versatile compactmultichannel- controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects.

Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the MPDI C - Series is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 16 available input/output modules.

The device can simultanously record all build-in logical channels (60), and is capable to record data with maximum speed 10Hz (ten samples per second, with some limitation of number of recorded channels).

1.5GB of internal data memory is enough for continuous recording of all channels with a speed of 1 sample per second (each channel) for over 50 days (250 000 000250 000 000  samples in total!). An operator van download stored data using a USB flash disk or via Ethernet.









Data dapat ditampilkan dalam berbagai pilihan:

  • Nilai Numerik
  • Quasi-analog indicators
  • Phasor charts
  • Horizontal or vertical charts
  • Horizontal or vertical bars
  • Simultaneous presentation of many groups.






Remote Monitoring & Control System

  • Easy configuration of data communication connections
  • Ability to send alert emails and SMS
  • Extended reporting systems
  • Graphical process visualisation
  • Operates with other meter provided with Modbus RTU SLAVE


SAP Ready Interface



logo_sap_testingindonesia.jpgTestindo dapat mengintegrasikan upgrade control & monitoring system dengan interface ke SAP / ERP, baik dengan modul production planning, material management, sales and delivery,  quality management, plant maintenance, dll sesuai kebutuhan customer.








Customer/Beberapa Referensi:





Spesification:







Katalog MPDI C-Series dapat di DOWNLOAD Dibawah ini:




Beberapa pengalaman dari DATA LOGGER INDONESIA selaku member of PT Testindo dalam mendesain MPDI - C Series untuk beberapa Aplikasi dapat dilihat sebagai berikut:

  • Design and Building Remote Monitoring & Control System
  • Upgrade Monitoring & Control System Sizing Machine
  • Data logger for Gas Turbine Power Generator Monitoring
  • Remote Monitoring & Control Temperature Humidity Warehouse
  • Automatic fruit juice composing system
  • Analog measure points concentrator system
  • Cool Strage Monitoring System
  • PID loop system
