Description

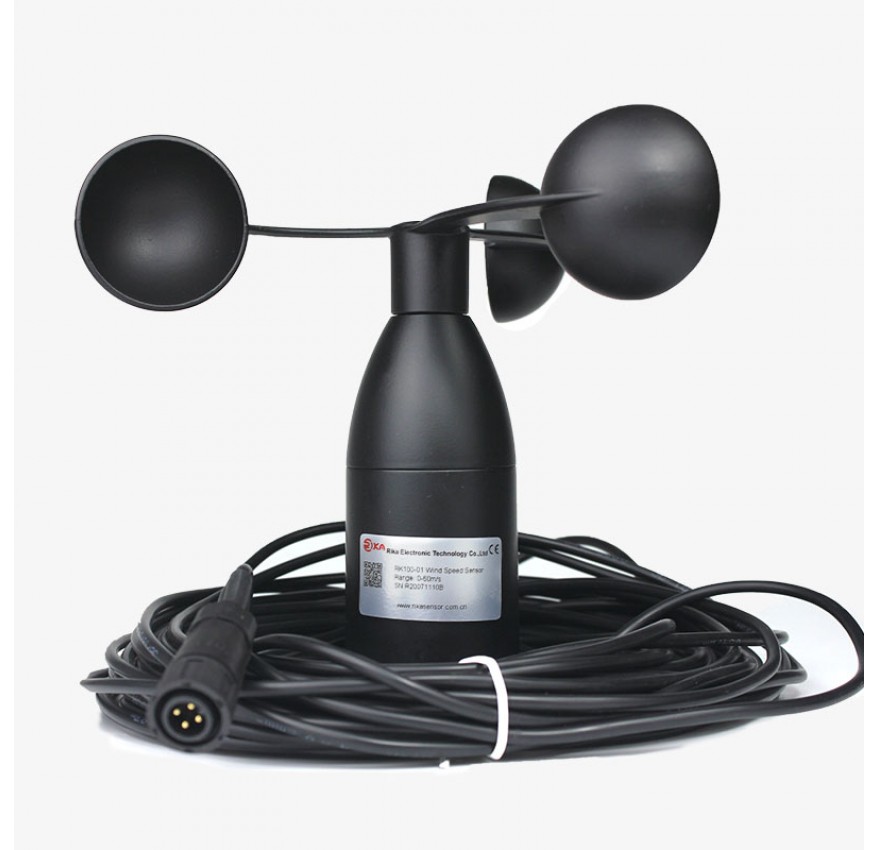

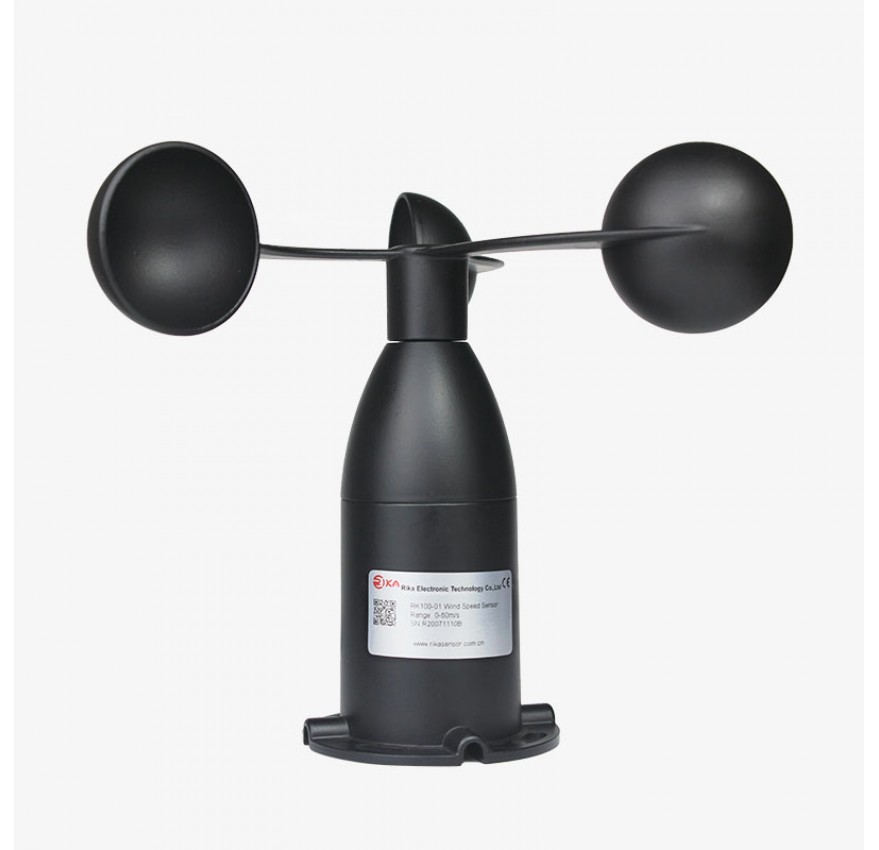

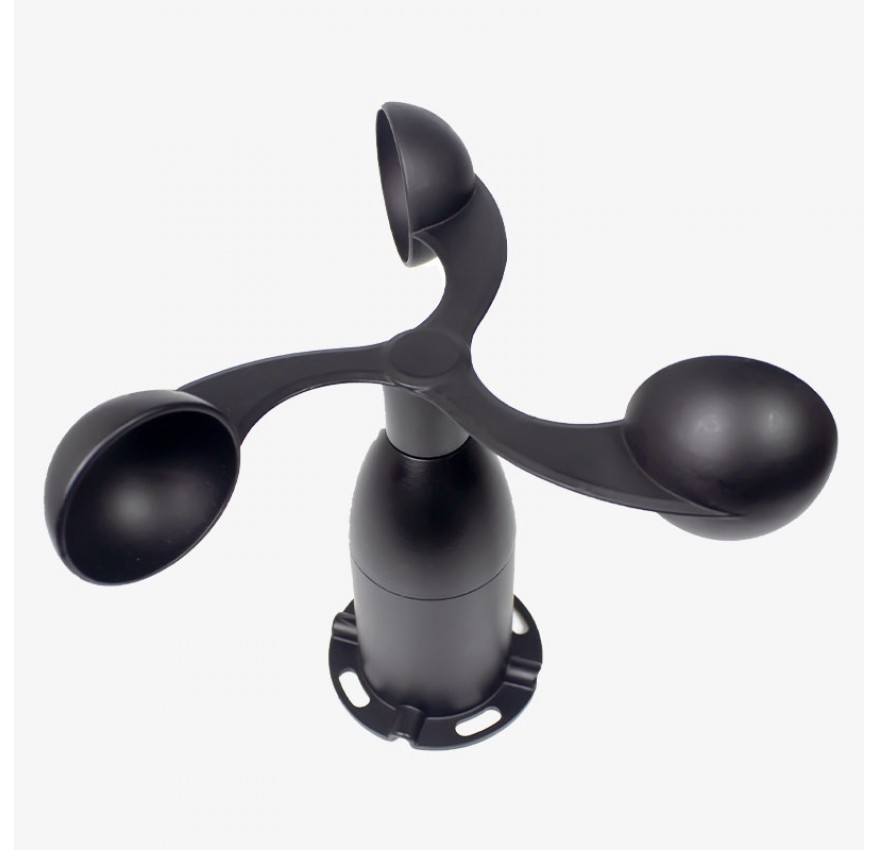

The RK100-01B Wind Speed Sensor is opto - electronic specific to accurately &reliably measure wind velocity under the adverse environmental conditions. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation. Shell is made of high-strength aluminum alloy,the wind 3cup is made of 304 stainless steel, the PCB board is painted with anti-corrosion coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in. The RK100-01 Wind speed sensor has good performance in harsh environment.
Feature
DIMENSION & MOUNTING

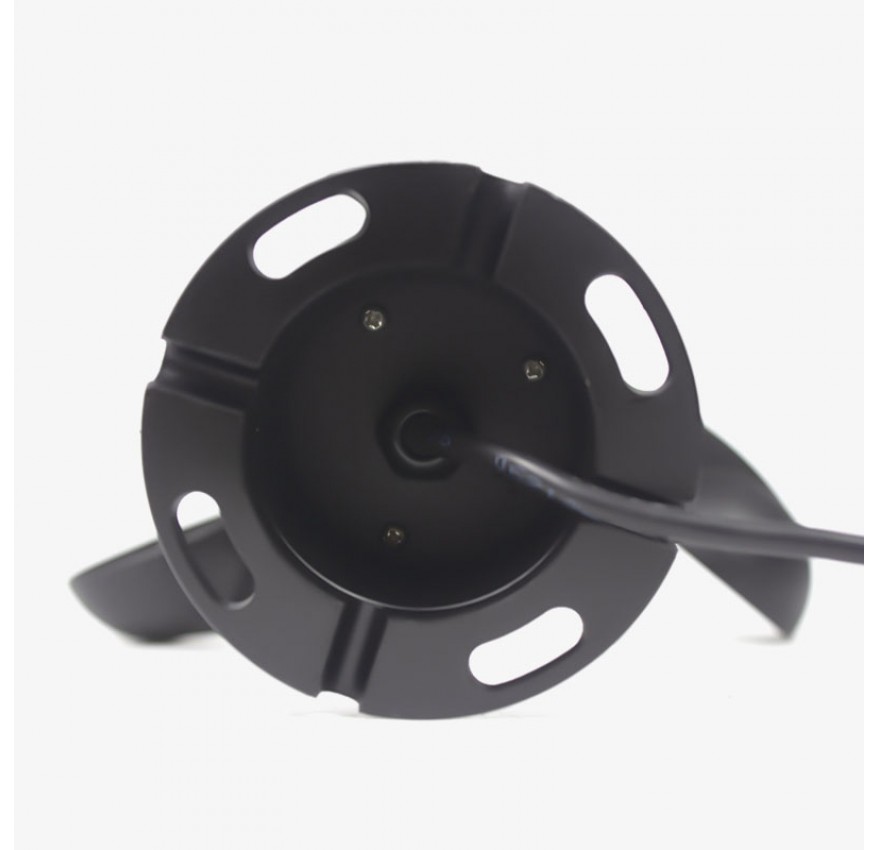

Flange mounted, fix four screws on the bracket and keep the product horizontal.
PRODUCTS DETAILS
Spesification
|
Output |
Pulses |
4-20mA |
RS485 |
0-2V/0-5V/0-10V |
|
Supply voltage |
5V-24VDC |
12V-24VDC |
12V-24VDC |
12V-24VDC |
|
Load capacity |
>2KΩ |
<500Ω(typ 250Ω) |
|
>2KΩ |
|
Range |
0-75m/s |
0-75m/s |
0-75m/s |
0-75m/s |
|
Accuracy |
0.3m/s |
|||
| Resolution | 0.5m/s | |||
|
Starting threshold |
<0.3m/s |
|||
|
Limit wind speed |
80m/s |
|||
|
Ingress protection |
IP65 |
|||
|
Operating temperature |
-30? ~ +70? |
|||
|
Weight(unpacked) |
420g |
|||
|
Dimension |
Cup rotor: 220mm, Height: 175mm |
|||
|
Main material |
Cup:304stainless steel, Main Body:Aluminum alloy |
|||
| Finish | Polyester powder electrostatic spraying(black) | |||
|
Storage condition |
10?-60?@20%-90%RH |
|||
