Description

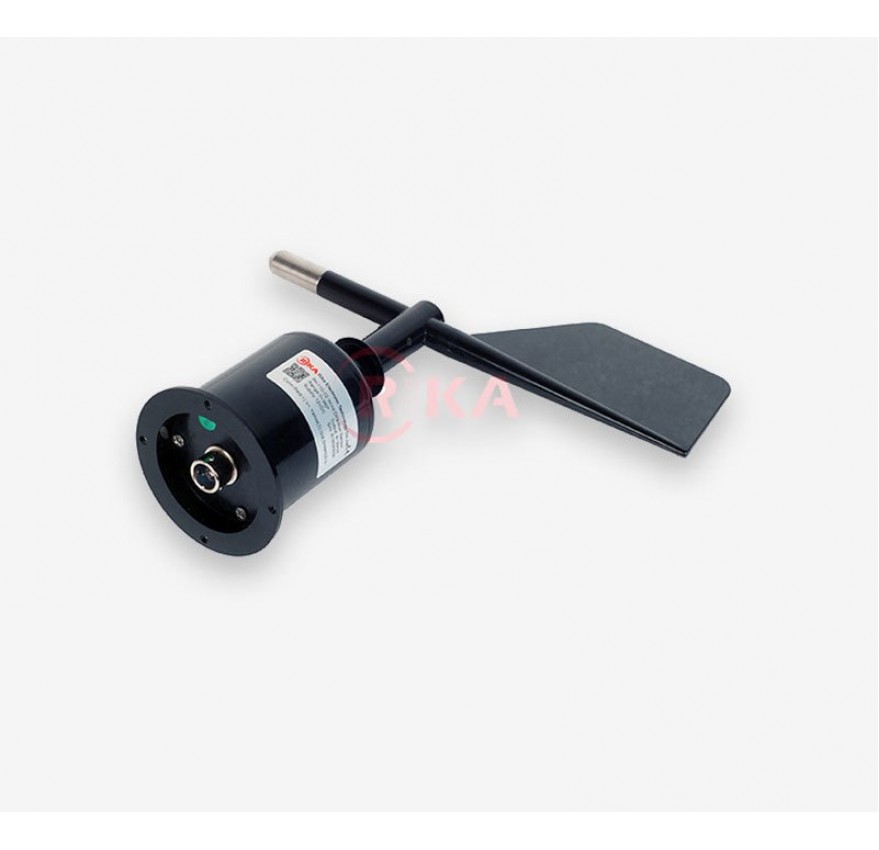

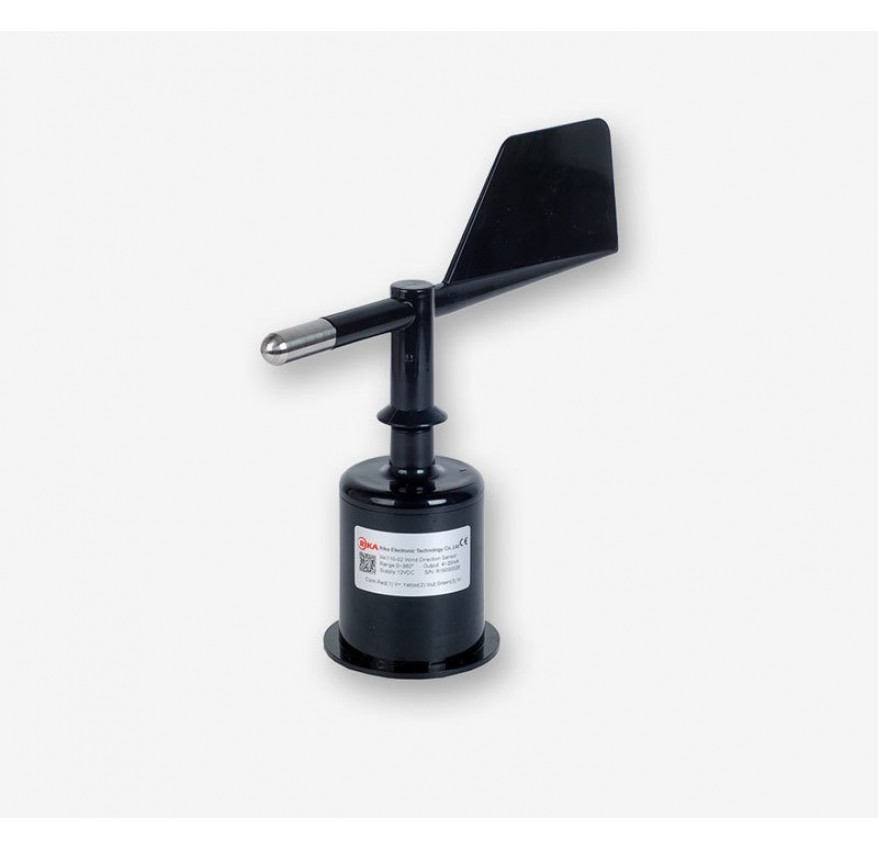

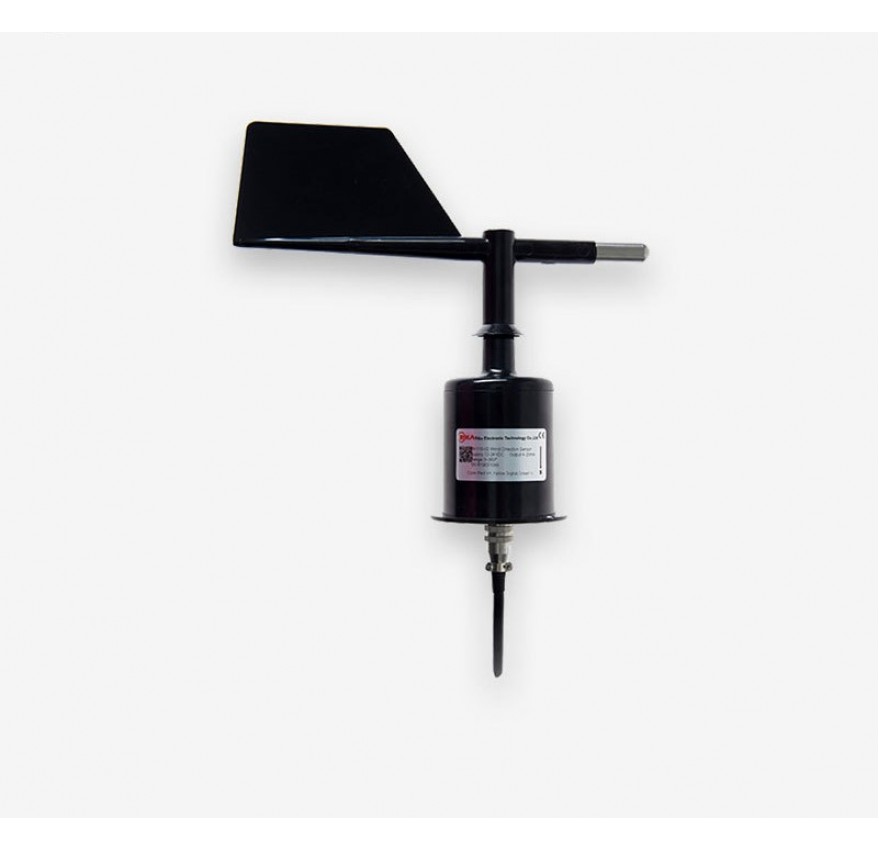

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.
Feature
DIMENSION & MOUNTING
fix the four screws on the bracket and keep the product horizontal. There is a arrow marker on the label. Please make sure the marker is pointed to the south during installation (you can use a compass for positioning).
Connector dimension: ø15mm (recommended reserving ø 25mm for wiring) Unit:mm
Spesification
|
Output |
4-20mA |
0-5V |
RS485 |
|
Supply Voltage |
5V,12V-24V |
5V,12V,24V |
5V,12V-24V |
|
Load Capacity |
<500Ω(typ 250Ω) |
>1kΩ |
|
|
Range |
0~360° |
||
|
Accuracy |
±3° |
||
|
Resolution |
1° |
||
|
Starting Threshold |
<0.5m/s |
||
|
Limit wind speed |
50m/s |
||
|
Ingress Protection |
IP65 |
||
|
Operating Temperature |
-40?~+50? |
||
|
Cable Grade |
Nominal voltage: 300V, Temperature grade: 80? |
||
|
Weight(unpacked) |
195g |
||
|
Dimension |
Turning Radius:147mm,Height:199mm |
||
|
Main material |
Carbon fiber |
||
|
Storage Condition |
10?-50?@20%-90%RH |
||
