Description
RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.
Feature
DIMENSION & MOUNTING

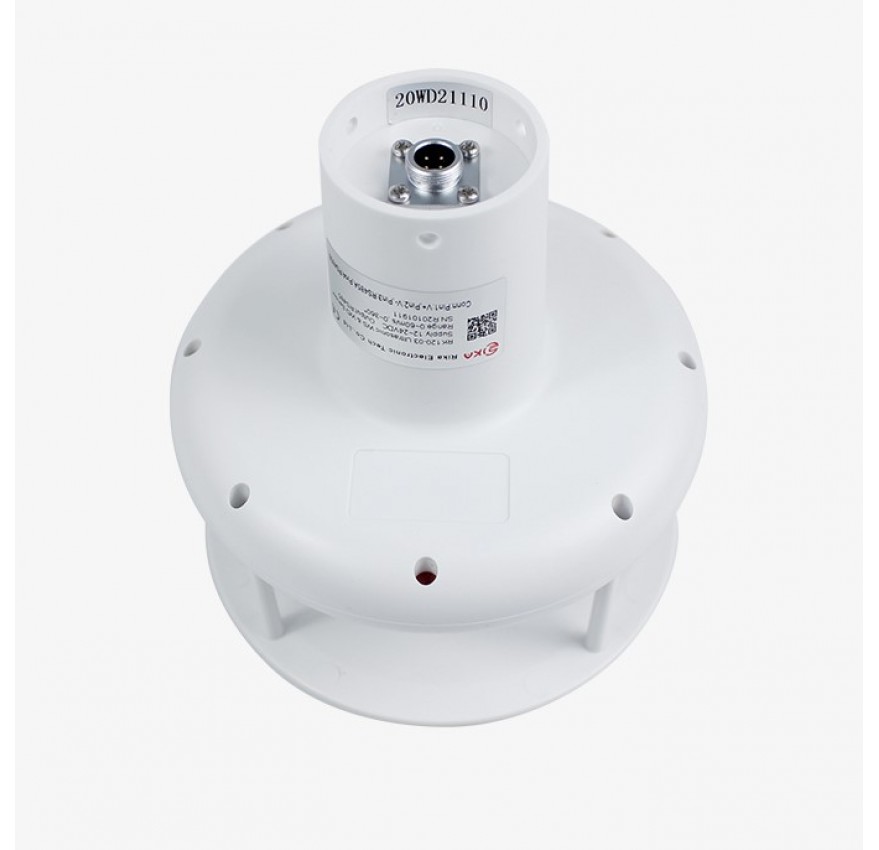

There is rotary adjustable mounting holes at the bottom of the senor, when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

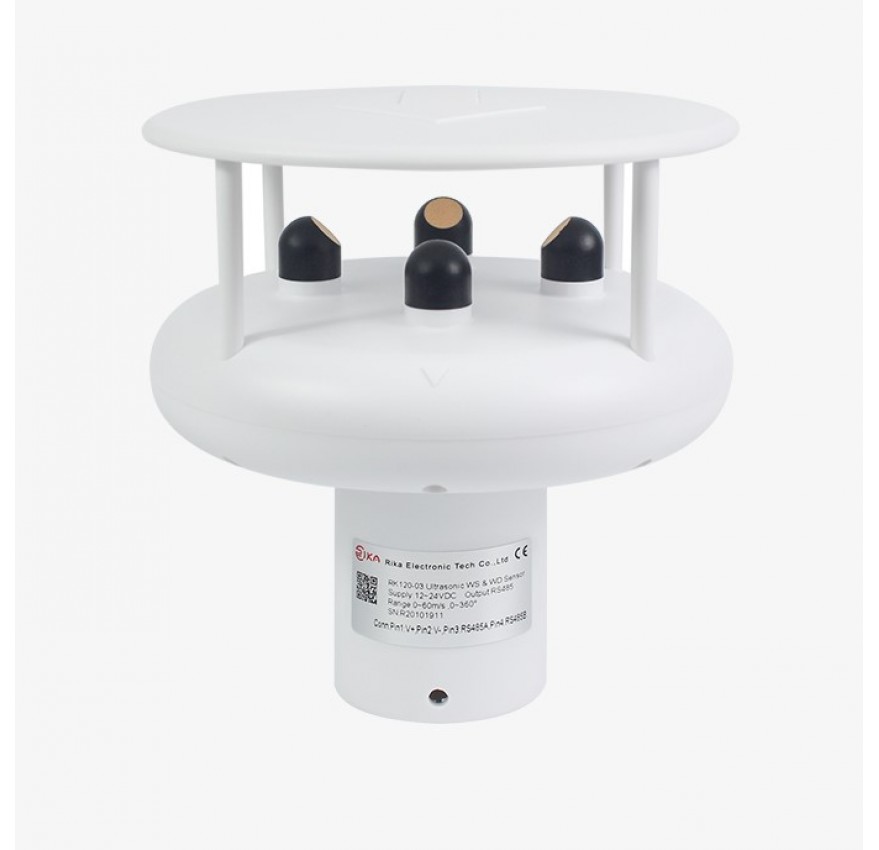

PRODUCTS DETAILS

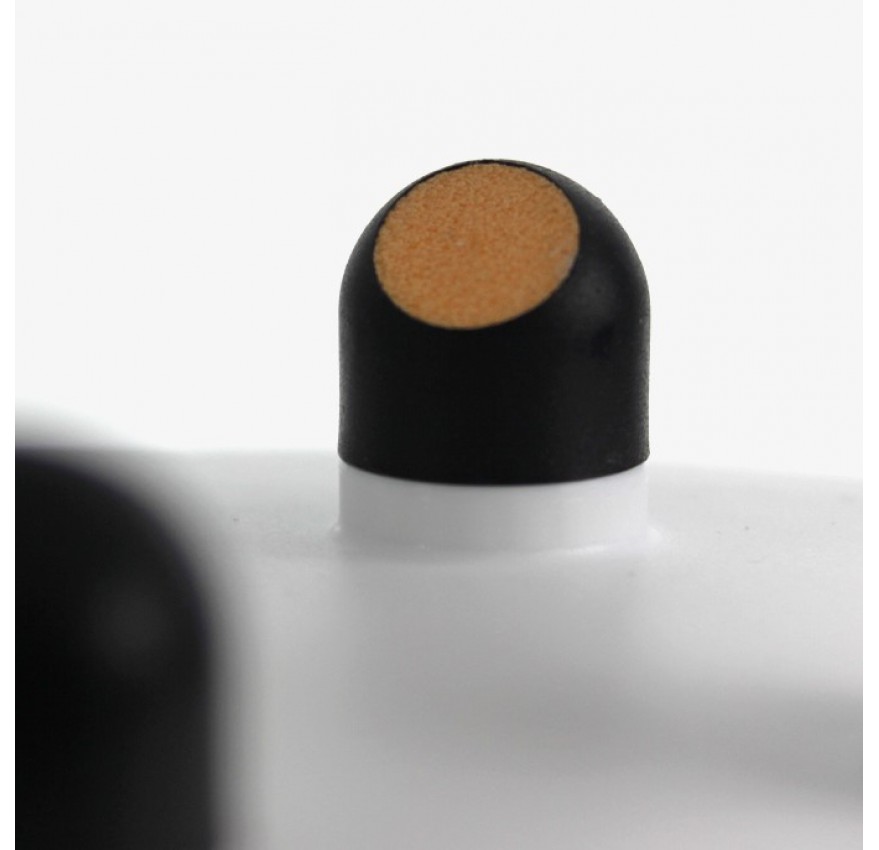

Ultrasonic Pavilion Reflection Principle
Suitable For Harsh Environment
Auto-Locate The Installation Position

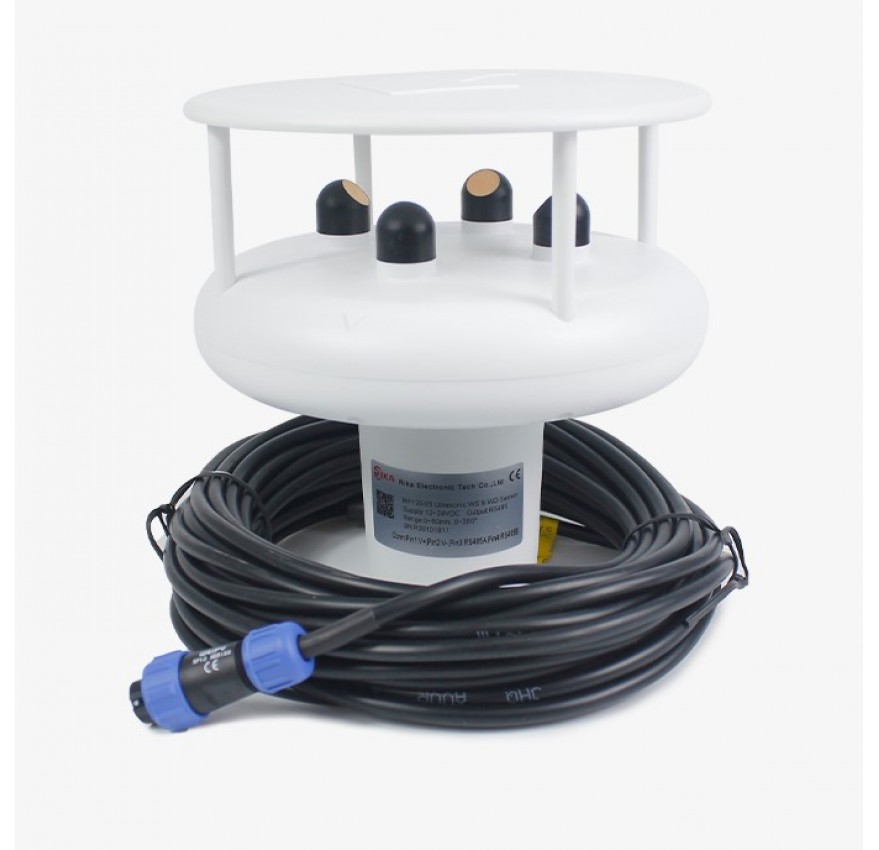

Connectors and installation
Spesification
|
Item |
Technical Specification |
|
Power Supply |
12-24VDC |
|
Power consumption |
<1W(Heating not activated); <3W(Heating activated) |
|
Output Signal |
RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional |
|
Operating Temperature |
-30?-+70? |
|
Ingress Protection |
IP66 |
|
Heating power |
3W max. |
|
Electronic compass |
optional |
|
Atmospheric pressure |
optional |
|
Dimension |
?144*148mm |
|
Weight(unpacked) |
0.8kg |
|
Main material |
ASA |
|
Item |
Technical Specification |
||
|
Wind speed |
Wind direction |
Atmospheric pressure |
|
|
Range |
0-45m/s,0-60m/s |
0-360° |
150-1100hPa |
|
Resolution |
0.01m/s |
1° |
0.1hPa |
|
Accuracy |
≤10m/s?±0.2m/s |
±3° |
±1 hPa |
|
Starting Threshold |
0.1m/s |
0.1m/s |
|
|
Extreme Wind Speed |
60m/s |
||
