Description

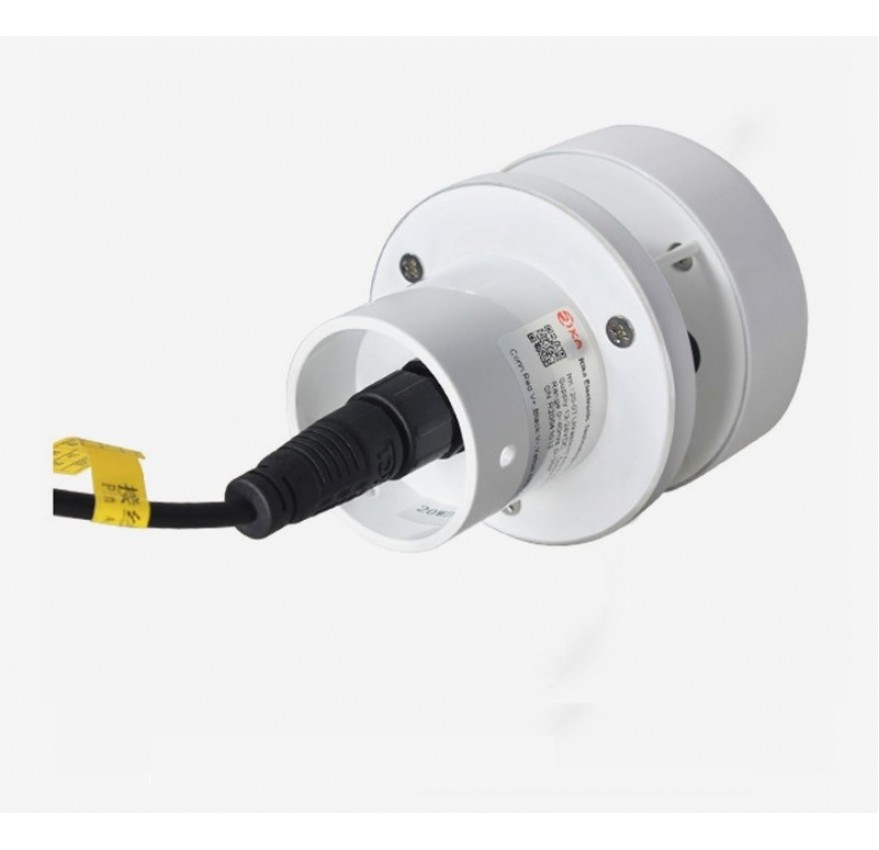

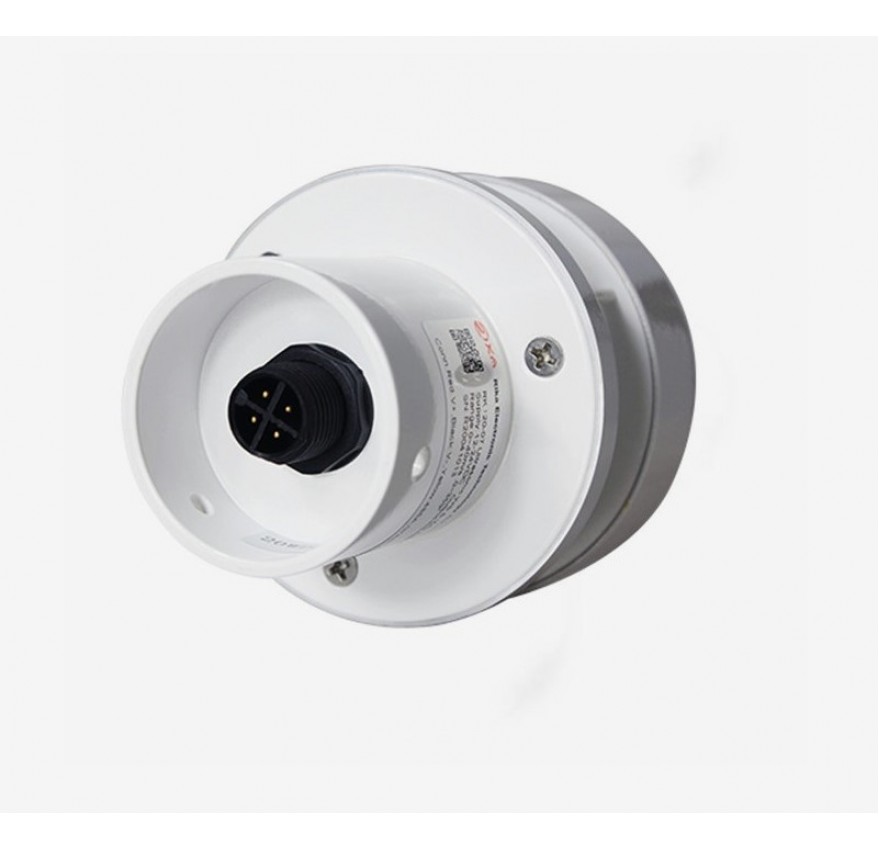

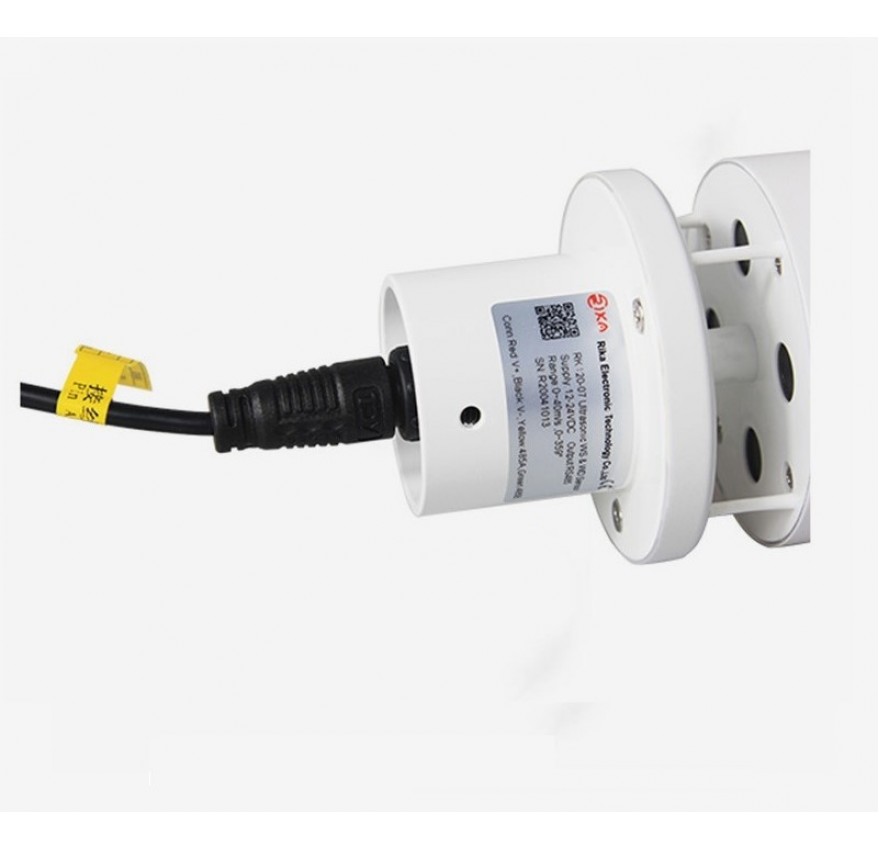

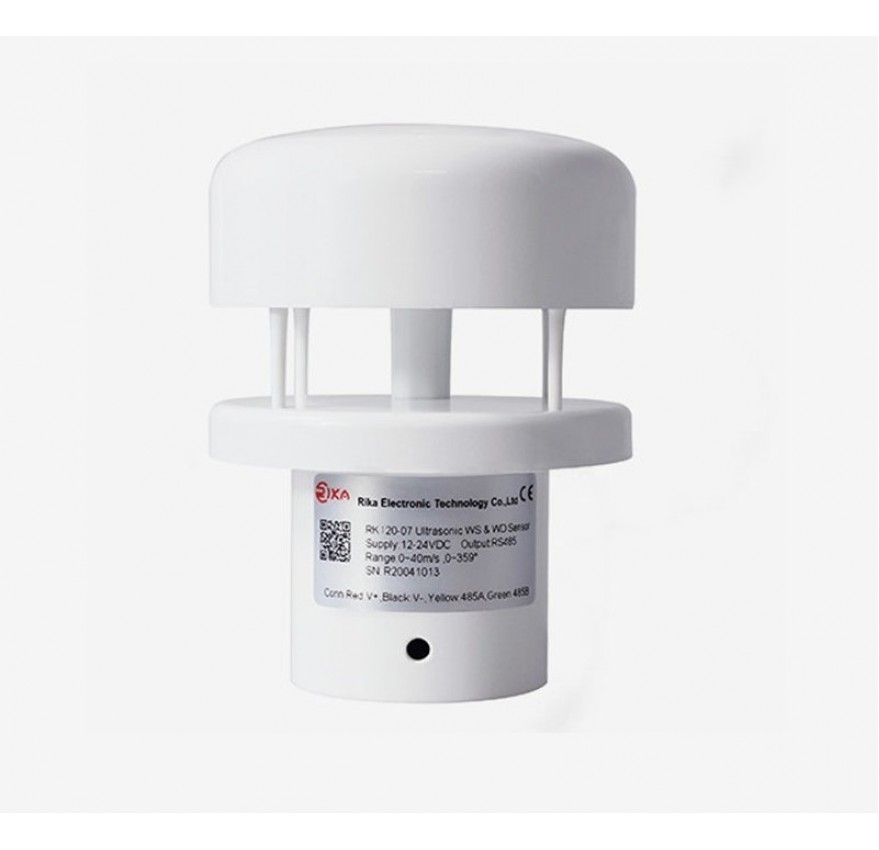

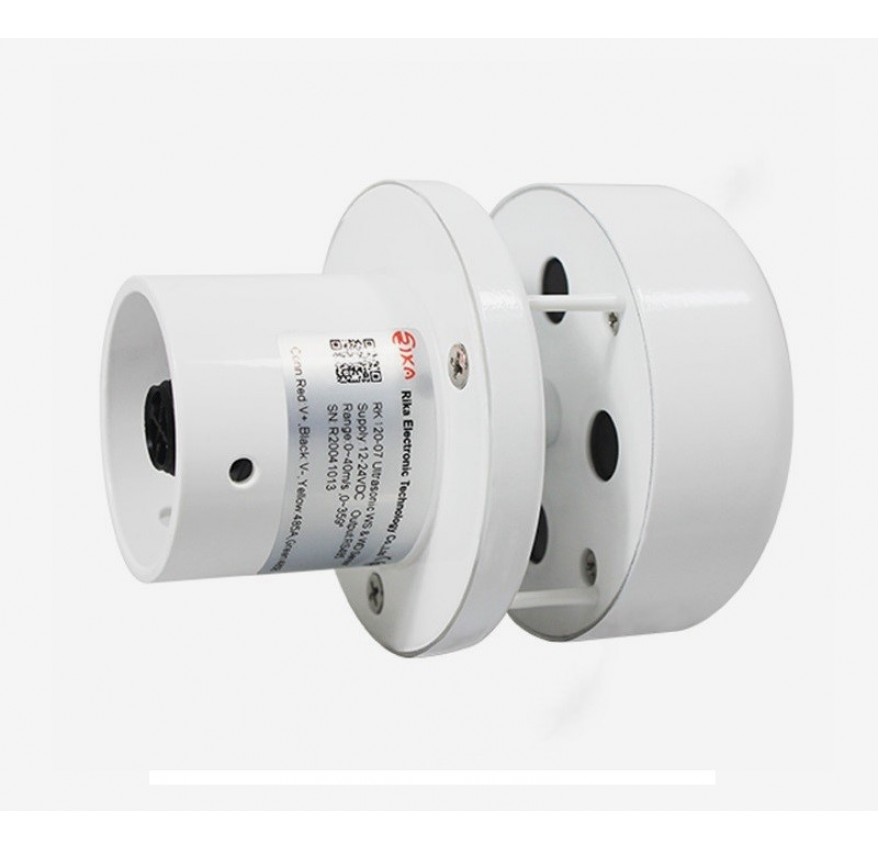

RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.
Feature
DIMENSION & MOUNTING
Step1:
Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.
For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.
Step2:
There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.
Step3:
Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.
PRODUCTS DETAILS
Spesification
|
Item |
Technical Specification |
|
Power Supply |
12-24VDC |
|
Power consumption |
1.7W |
|
Output Signal |
RS232/RS485(Modbus/NMEA-0183),SDI-12 |
|
Operating Temperature |
-30?-+60? |
|
Ingress Protection |
IP65 |
|
Dimension |
?82*108mm |
|
Weight(unpacked) |
0.8kg |
|
Main material |
ABS |
|
Item |
Technical Specification |
||
|
Range |
Resolution |
Accuracy |
|
|
Wind Speed |
0-40m/s |
0.1m/s |
±3% |
|
Wind Direction |
0-360° |
1° |
±3° |
| Starting Threshold | 0.1m/s | 0.1m/s | - |
| Extreme Wind Speed | 60m/s | ||
