Description

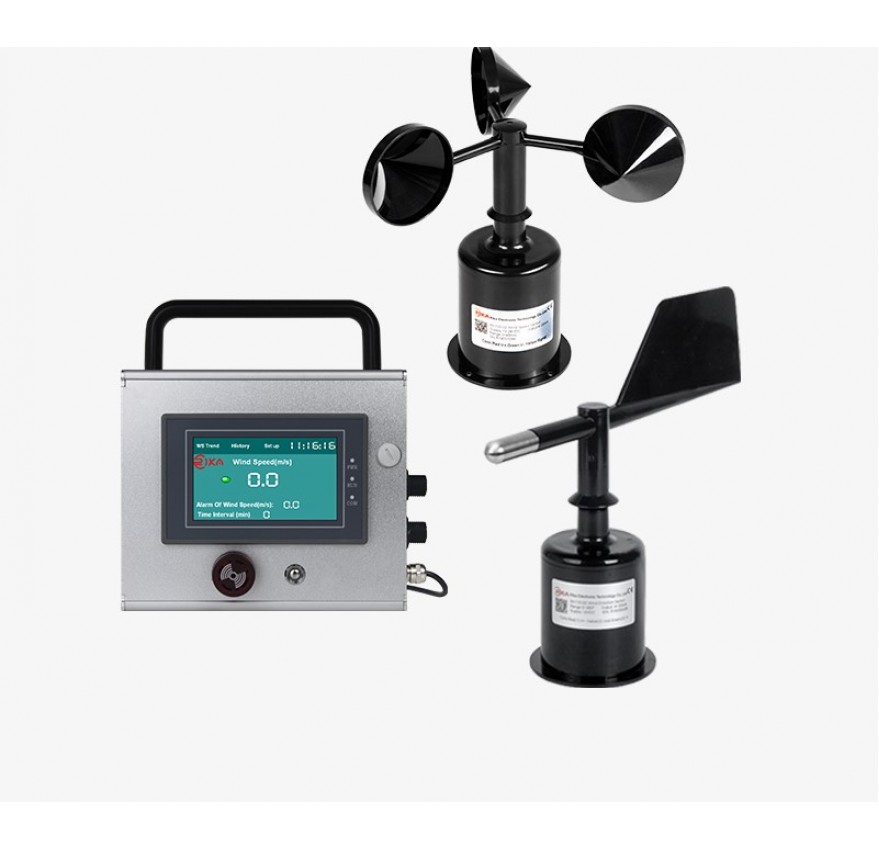

RK160-02 wind speed & direction display recorder is a meteorological instrument used to measure and record the wind speed and wind direction. The product adopts high-definition display the current date, time, the wind speed & wind direction value, built-in high-capacity flash memory chip which can be automatically stored for at least one-year meteorological data. The instrument can be widely used in meteorology, agriculture, forestry, environmental protection, marine, airport, port, scientific research and other fields. A complete set of products including RK600-08A data logger, wind speed sensor (RK100-01/RK100-02) & wind speed sensor (RK110-01/RK110-02). The default is RK100-02 &RK110-02, the RK600-08A data logger can also matchRK120-01/02/03 to use.
Feature
PRODUCT DETAILS
Spesification
|
Items |
Wind |
|
|
Range |
0-45m/s |
0-360° |
|
Resolution |
0.1m/s |
1° |
|
Accuracy |
±(0.3+0.03V)m/s |
±3° |
|
Power supply |
12VDC(adapter AC100V-AC240V ) |
|
|
Display |
4.3” color touch screen |
|
|
Response time |
<500mS |
|
|
Storage capacity |
65000 pieces of data can be stored. |
|
|
Recording time interval |
1min to 240 min optional |
|
|
Measurement parameters |
32 Max. |
|
|
Power consumption |
<4W |
|
|
Operating temperature |
-40?-+70?@5%RH?95%RH |
|
|
HMI processor |
ARM RISC 528MHz |
|
|
Relay and alarm output |
Customized alarm and relay control output |
|
