Description

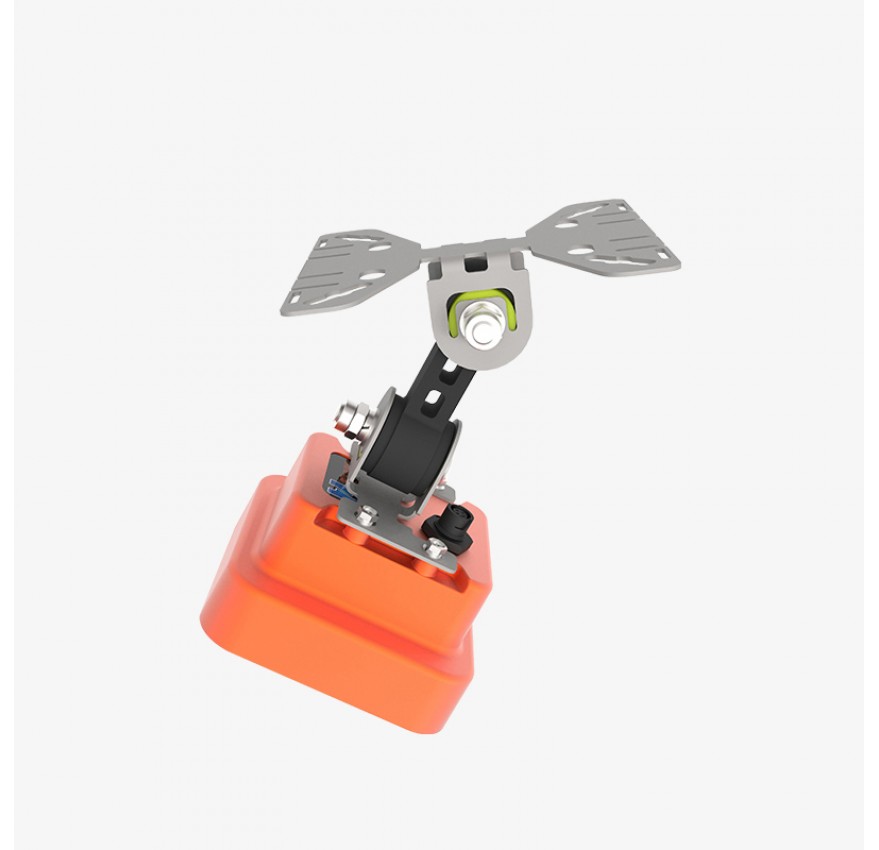

RKL-05 radar velocity meter is a non-contact radar velocity measurement device, which can effectively monitor.Surface velocity of water flow in various channels and natural channels.The product is easy to install and maintain, and easy to operate.Widely applicable to water.In the fields of literature, flood control and drainage, environmental pollution monitoring, etc., 7x24 hours online monitoring is realized
Spesification
|
Item |
Technical specifications |
|
frequency |
24GHz |
|
range |
0.1 ~ 20 m/s (It has to do with the flow pattern) |
|
Accuracy |
±0.01m/s ?±1%FS |
|
Resolution |
0.01m/s |
|
beam Angle |
12 ° |
|
Pitch Angle |
30 ~ 70 ° |
| Intelligent perception and compensation of attitude Angle |
Accuracy±0.5°?Resolution±0.1° |
| Supply |
DC6 ~ 30V (suggested use 12 v) |
| Power consumption |
Working current :40mA@12V; Standby current :5mA@12V |
| Output |
RS485(MODBUS-RTU) |
| Working temperature |
- 40 ? ~ + 80 ? |
| Protection grade |
IP68 |
| Product size |
105*105*60mm |
| weight |
0.45Kg |
| Cable length |
10 m(default), customizable |
