Description

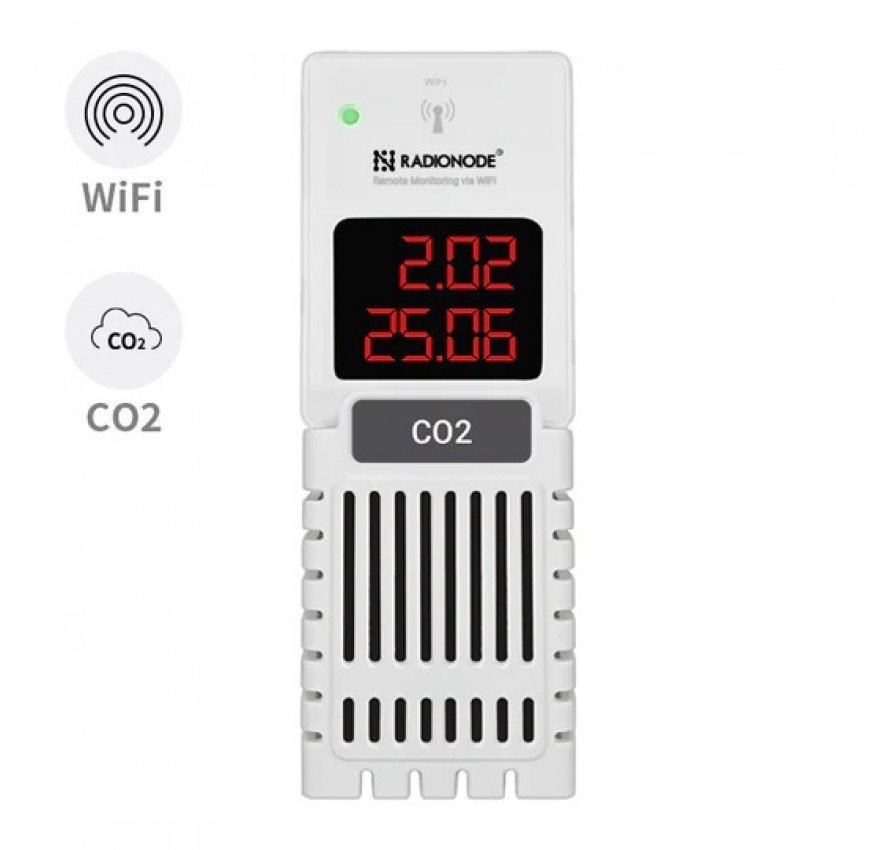

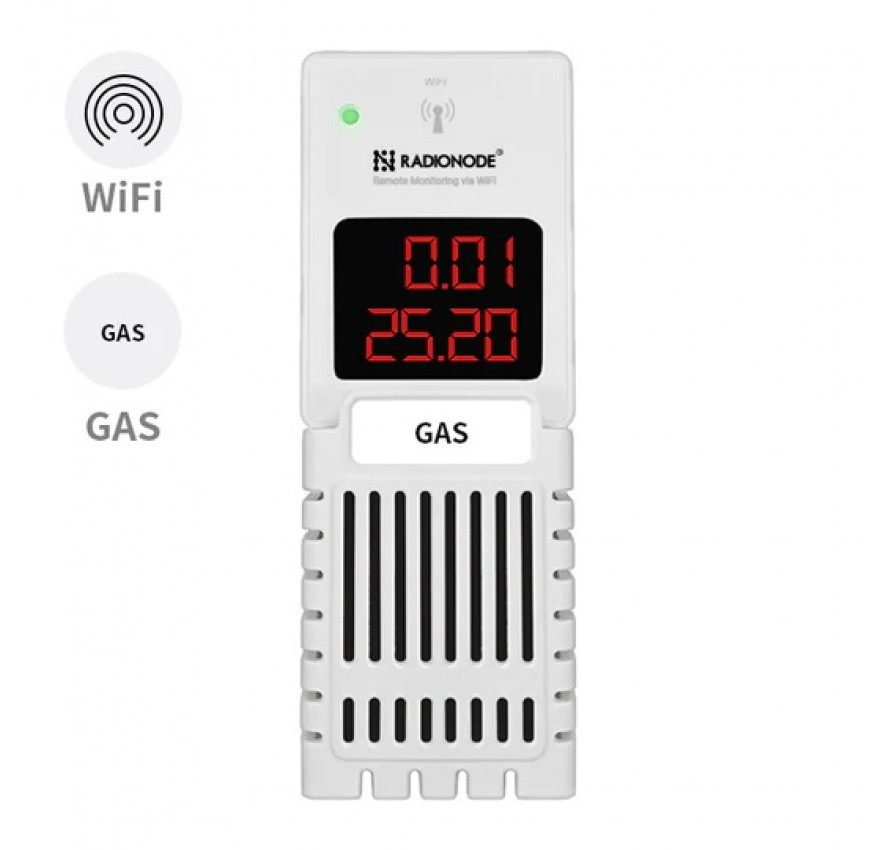

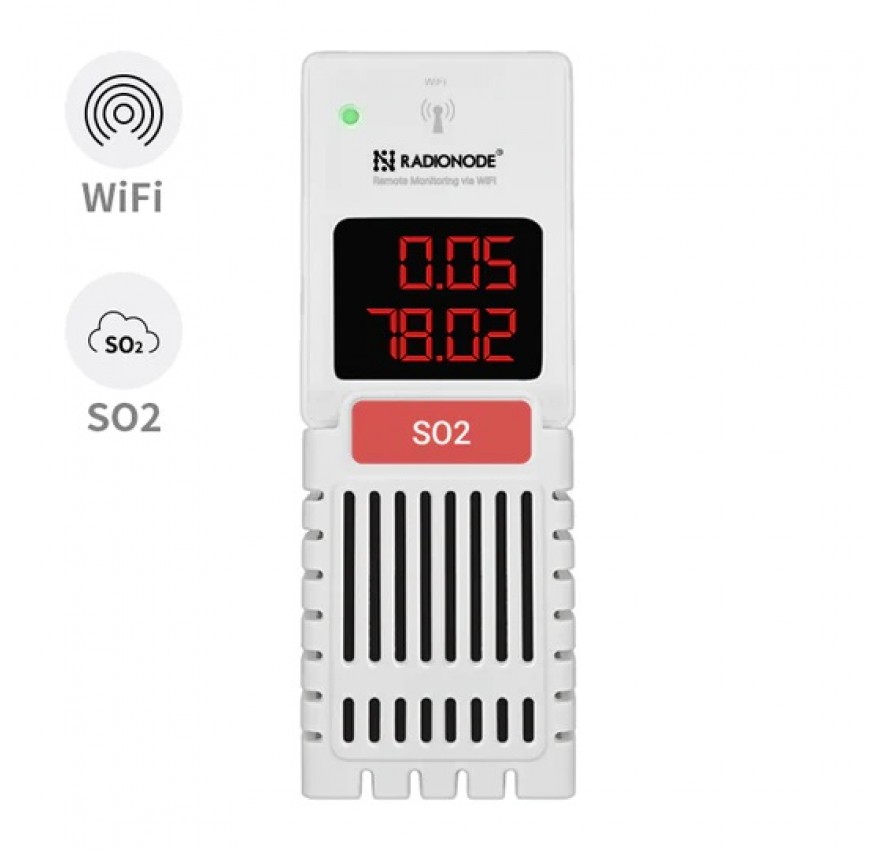

The RN172plus device is designed to transmit the measured gases or thermal data via WiFI to the destination. Thedestination would be an information system such as public cloud, local server, and even PC. The RN172plus device has a display on the front to show the data value and it has an alarm output with the range threshold values. Data can be transmitted to the user's server through MODBUS TCP and HTTP communication. In addition, with the cloud-based web monitoring service Radionode365, you can use a real-time dashboard, emergency SMS/Voice alarm, report generation and mail delivery scheduling function.
Feature
- Support Variable Sensor cartridges
- Support WiFi (WiFi IEEE 802.11 b,g)
- 4 Digit LED Display, 2 Lines
- Support MODBUS TCP, HTTP, Cloud Storage
- Alerts (Text Message, Voice Call)
- Internal Sound Buzzer
Spesification
|
Measured substance |
Cartridge Model |
Measurement Range |
|
VOC |
UA50 |
CH1: 0 ~ 60,000 ppb CH2: Absolute humidity(0 ~ 256 g/m3) or CO2eq(400 ~ 10000 ppm) |
|
Carbon dioxide |
UA52-CO2 |
CH1: 0~20% CH2: Temp. 0~50? |
|
Oxygen |
UA52-O2-A |
CH1: 0~25% CH2: Temp(-30~60?) or Barometric pressure(500 ~ 1200 mBar) |
|
Carbon monoxide |
UA53-CO |
CH1: 0~1000 ppm CH2: Temp. -20~40? |
|
Nitrogen dioxide |
UA53-NO2 |
CH1: 0~10 ppm CH2: Temp. -20~40? |
|
Sulfur dioxide |
UA53-SO2 |
CH1: 0~20 ppm CH2: Temp. -20~40? |
|
Ethylene |
UA54-C2H4-10 |
CH1: 0~10ppm CH2: Temp. -40~50? |
|
Ethylene |
UA54-C2H4-100 |
CH1: 0~100ppm CH2: Temp. -40~50? |
|
Ethylene oxide |
UA54-EO |
CH1: 0~10ppm CH2: Temp. -40~50? |
|
Hydrogen sulfide |
UA54-H2S |
CH1: 0~50ppm CH2: Temp |
|
Hydrogen chloride |
UA54-HCL |
CH1: 0~20ppm CH2: Temp |
|
Ammonia |
UA54-NH3-100 |
CH1: 0~100ppm CH2: Temp. -10~50? |
|
Ammonia |
UA54-NH3-1000 |
CH1: 0~1,000ppm CH2: Temp. -10~50? |
|
Oxygen |
UA54-O2 |
CH1: 0.1~20.9% CH2: Temp. -30~55? |
|
Hydrogen |
UA54-H2-4 |
CH1: 0~40,000ppm CH2:Temp. -40~50? |
