Description

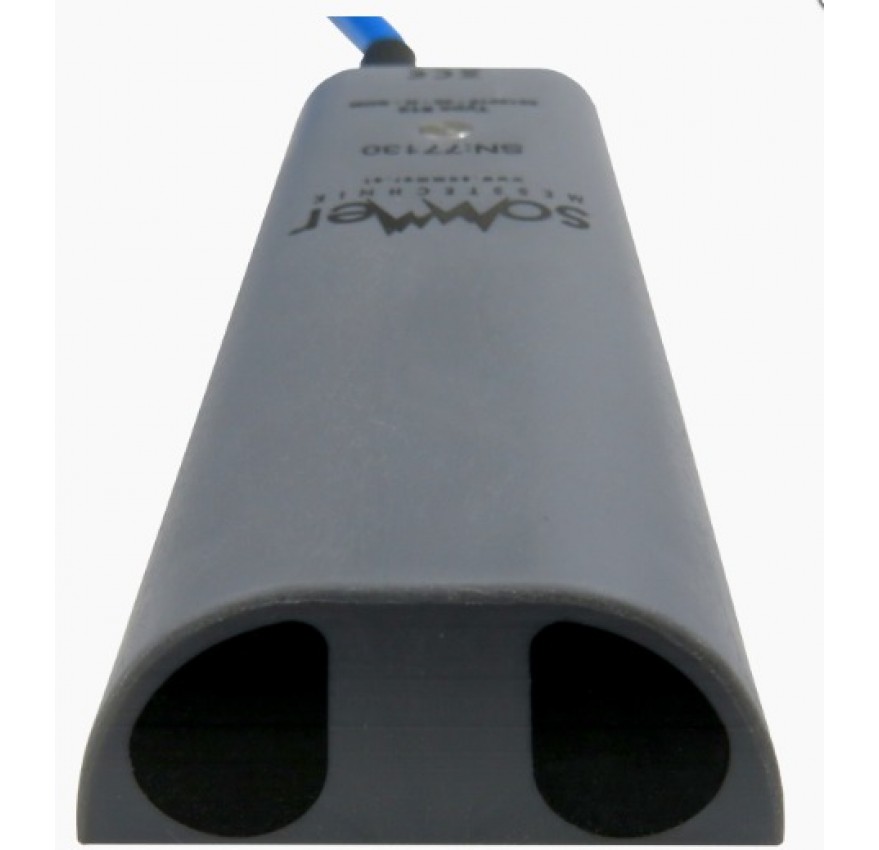

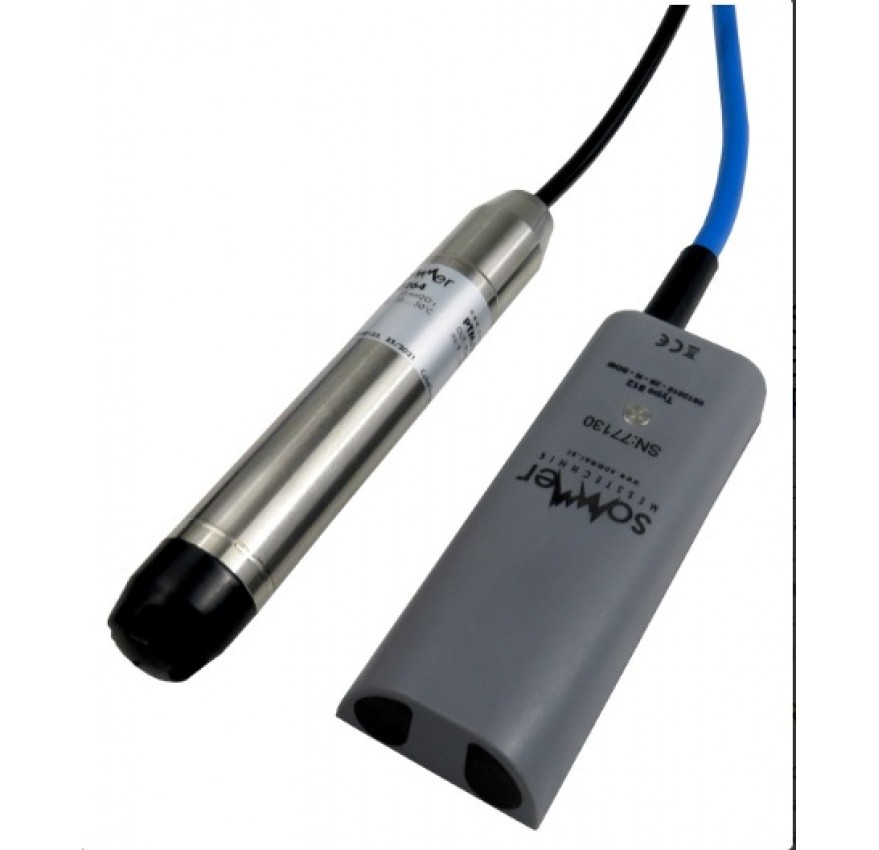

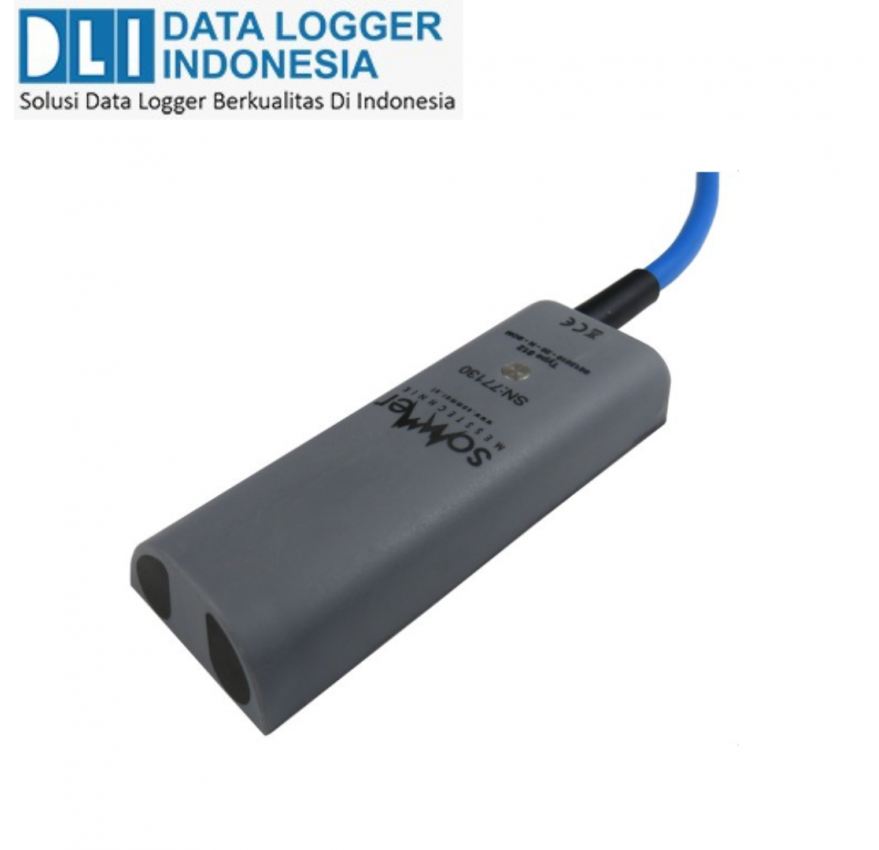

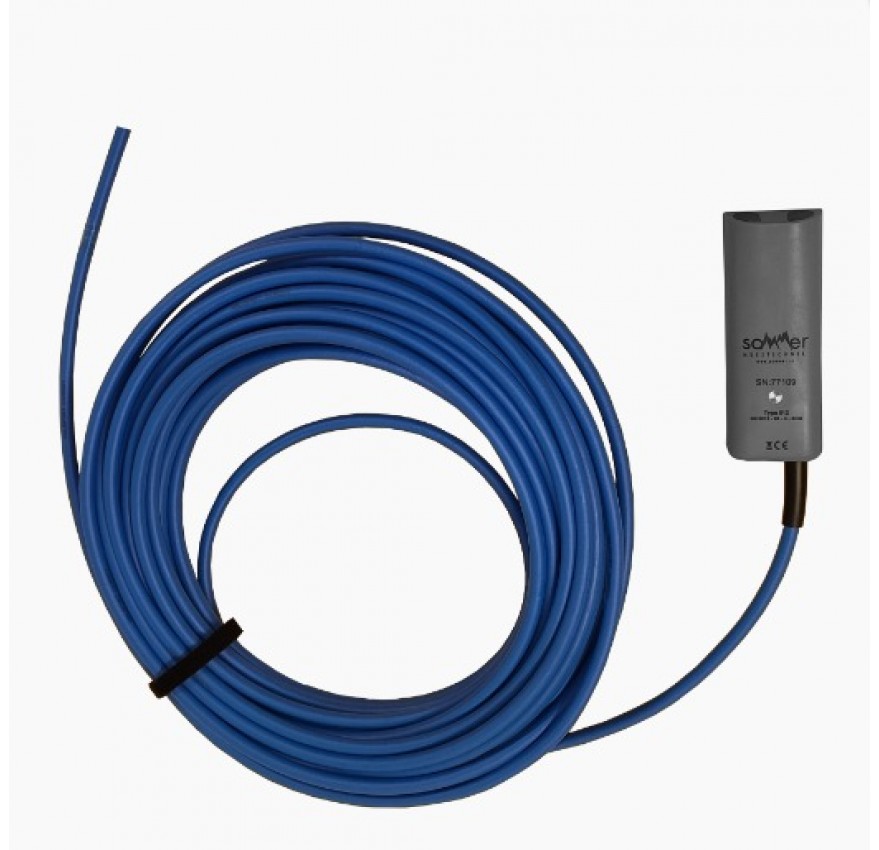

ULTRASONIC VELOCITY SENSOR
The SOMFLOW continuously measures the water or effluent velocity in ducts, pipes and open canals in sewer networks, water treatment plants and industrial facilities. The twin 1-MHz ultrasonic Doppler transceiver determines flow velocities from as low as 0.01 m/s to 5 m/s.
FEATURES
- Flow velocity range 0.01 ... 5 m/s
- Versatile installation options
- Waterproof housing that is resistant to aggressive liquids
- Simple integration into existing data acquisition and control systems
- Easily linked to data loggers
- Multiple data interfaces: RS-485, Modbus RTU, SDI-12
Spesification
|
Measurement range |
Bi-directional 0.01 to 5 m/s (0.03 to 16.4 ft/s) |
|
Accuracy |
± 2 % of reading if V ≥0.5m/s (1.64 ft/s)± 0.01 m/s (± 0.03 ft/s) if V<0.5m/s (1.64 ft/s) |
|
Resolution |
1 mm/s (0.003ft/s) |
|
Minimum fluid level |
5 mm (0.59 in) to 20mm (0.79in) above base of sensor, provided transducers fully wetted |
|
Immersion |
up to 1 bar |
|
Protection rating |
IP68 |
|
Principle |
Doppler sensor using twin 1 MHz transducers |
|
Output |
RS-485, Modbus RTU, SDI-12 (flow velocity, temperature, quality, diagnostics) |
|
Power supply |
9 to 28 VDC |
|
Power consumption |
standby 14 mA, measurement 25 mA (@12 VDC) |
|
Operating temperature |
-20 to +60 °C (fluid non-freezing) |
|
Storage temperature |
-20 to +70 °C |
|
Size |
L x B x H 122 x 46 x 19 mm |
|
Weight |
|
|
Material |
PVDF, polyurethane, 316 Stainless steel |
