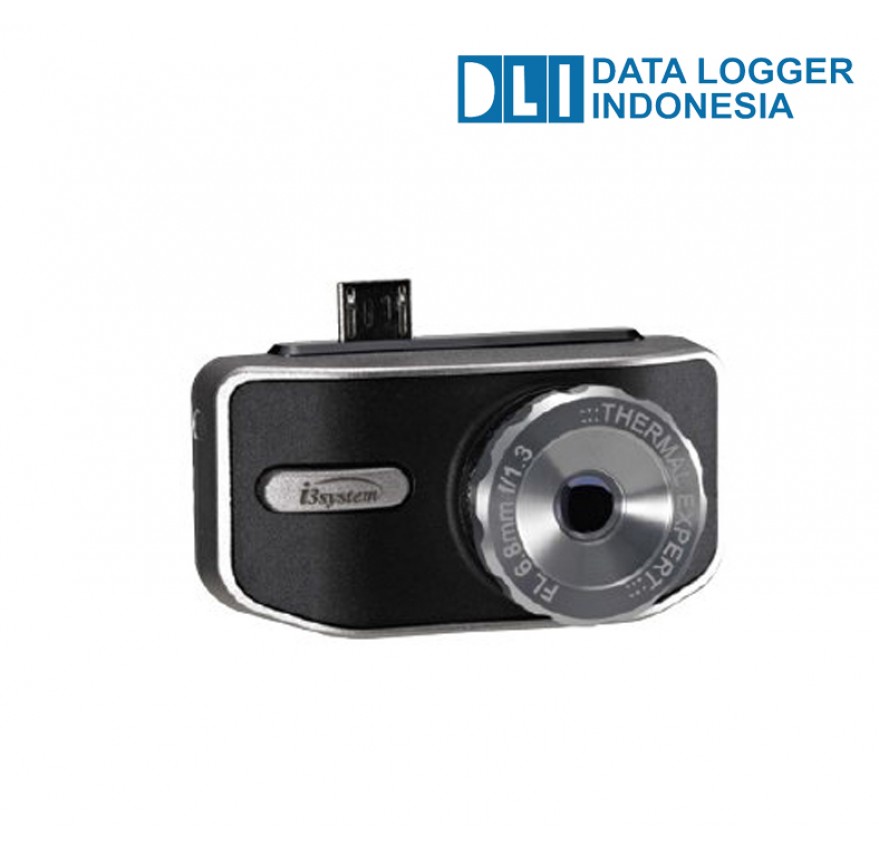

Thermal Camera TE-Q1




Inquiry

Description

- High Perfomance

- High Resolution : 640 x 480 (17µm pitch)

- High Sensitivy : < 50 mk

DIMENSIONS

RANGE PERFOMANCE




Feature

- Temperature measurement  for whole pixels.

- Convenient image view functions with infrared and visible

- Easy graphical user interface (digital zooming, color pallete.)

- Interchangeable Lens


Spesification

Array Format

384 x 288

Pixel Pitch

17µm

Wave Length Band

8 – 14 µm (Longwave Infrared)

Sensitivity

≤ 50 mK@F/1, 300 K

≤ 80 mK@F/1.3, 300 K

Frame rate

< 9 Hz

Scene range temperature

-10oC – 150oC (PLUS: -10oC – 120oC, PRO: -10oC – 250oC)

Operating Temperature

-10oC – 50oC

Power consumption

≤ 500 mW

Weight

< 27 g (with lens)

Dimensions (WxHxD)

47 mm x 25 mm x 16 mm (without lens)

Interface

Micro USB or USB-C

Platform

Android, Windows

Type of Lens

Wide: 6.8 mm f/1.3

Narrow: 13 mm f/1.0

FOV[o]

Wide FOV (default) : 56.3o (H) x 41.8o (V) – 71.4o (diagonal)

Narrow FOV (optional) : 28.7o (H) x 21.7o (V) – 35.3o (diagonal)

Focus Range

Wide FOV: 0.2m to infinity

Narrow FOV: 0.4m to infinity
