Description

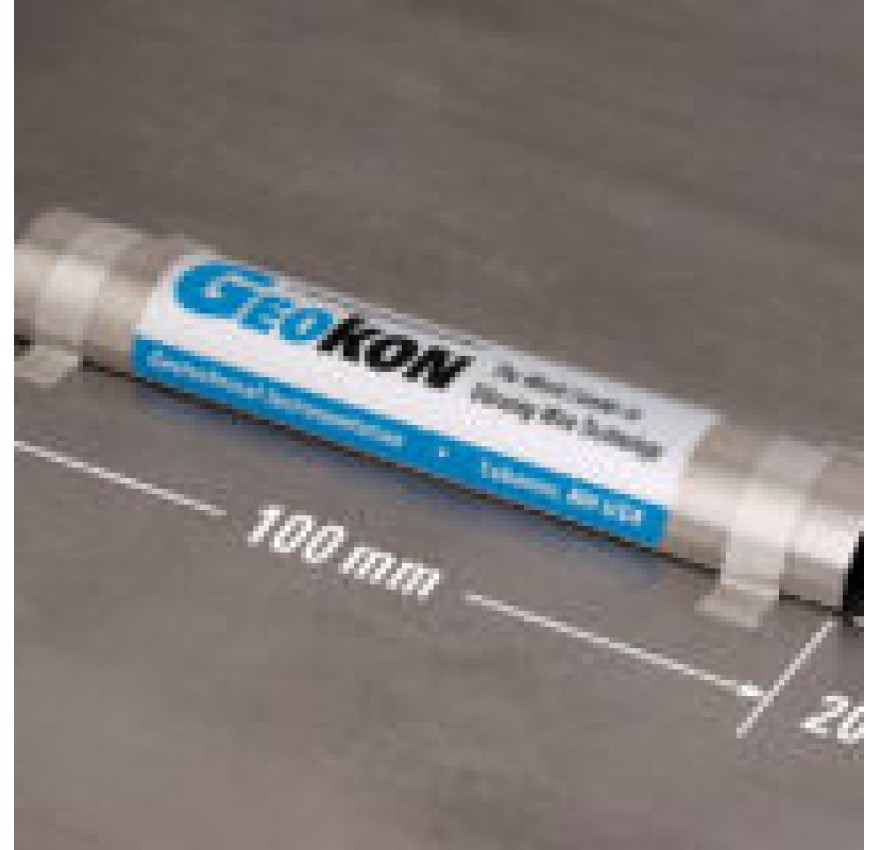

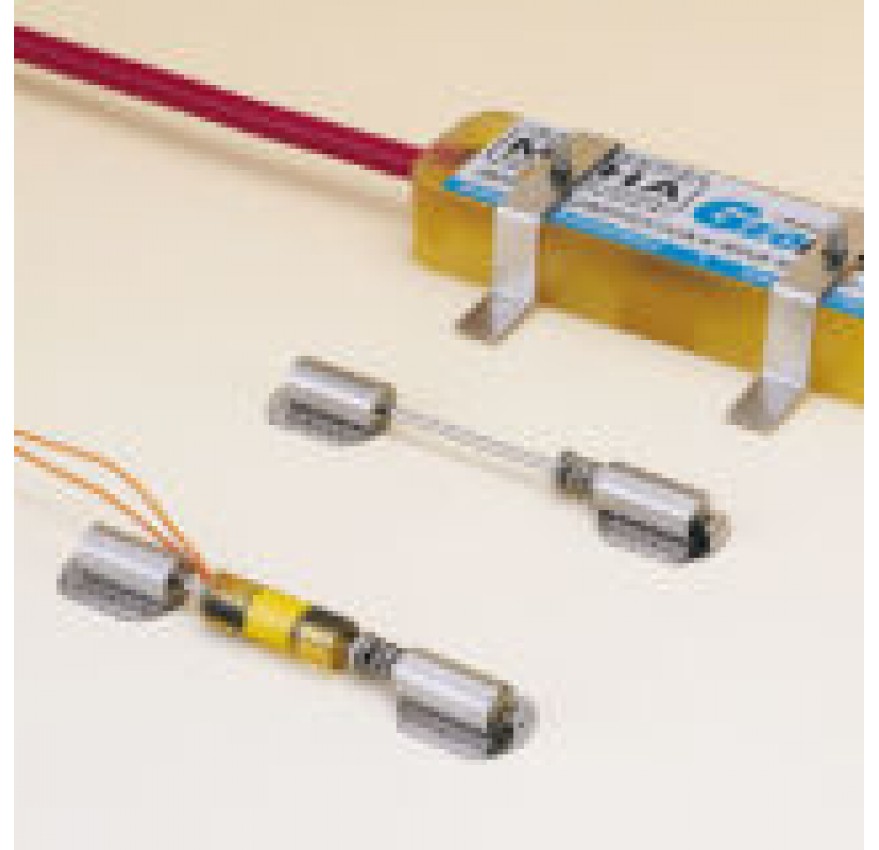

The Model 4100/4150 Strain Gage has a 51 mm gage length (3000 µε range, 1 µε sensitivity) and is designed to measure strains in steel structures (4100) and on reinforcement bars (4150) where space may be limited.
Feature
- Proven and reliable vibrating-wire technology
- Attached with Capacitive Discharge Welder
- Stable long-term output
- Suitable for very long instrumentation cable
- Stainless steel construction resists corrosion
- On-board thermistor
APPLICATIONS
- Bridges
- Pipelines
- Buildings
- Steel piles
- Reinforcement bars
Spesification
|
Standard Range |
3000 µε |
|
Resolution |
0.4 µε |
|
Accuracy1 |
±0.5% F.S. |
|
Nonlinearity |
<0.5% F.S. |
|
Temperature Range2 |
−20 °C to +80 °C |
|
Active Gage Length |
51 mm |
1 ±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration. Accuracy established under laboratory conditions.
2 Other ranges are available on request.
