Description
Product Description

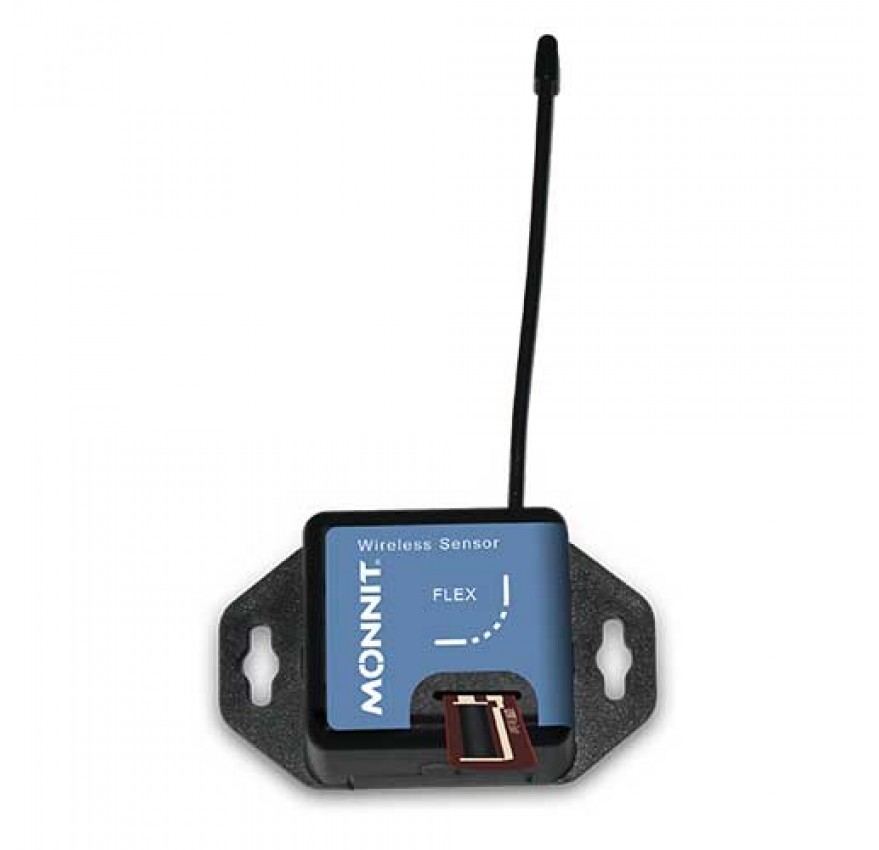

Monnit wireless flex sensors use a flexible, stress sensitive ribbon to accurately measure the amount of bend (force) applied to the ribbon. Perfect for measurement of mechanical movement, air flow, water flow, or even vibration. User customization allows you to set the frequency of readings and the ability to set thresholds notifications or alerts from the iMonnit online sensor monitoring system.
Suggested Application Uses for This Sensor
- Measure mechanical movement
- Measure amount of bend applied to sensing ribbon
- Occupied seat monitoring
Spesification
Flex Sensor Element Specifications
| Base Resistance | 100 O - 500 KO |
| Weight | 0.7 oz. |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F) |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
