Description
WELL PROVEN RQ-30 DISCHARGE MEASUREMENT WITH DATA LOGGER AND DATA TRANSMISSION IN COMPACT HOUSING

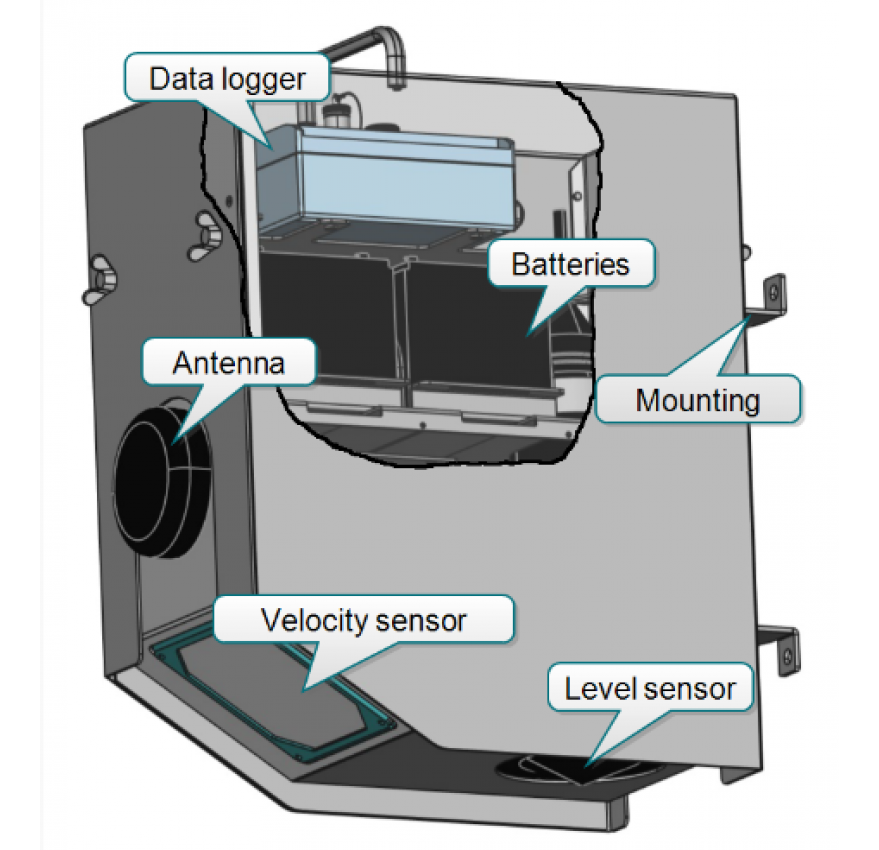

The RQ-30 ADMS is an all-in-one discharge measurement System. It contains the non-contact flow velocity and water level sensors of the RQ- 30 and applies the same algorithms and model to calculate the discharge in the RQ-30 sensor.
The rechargeable batteries allow autonomous operation for several month and the integrated charge controller provides for an easy connection of a solar panel. The integrated data logger of the RQ-30 ADMS offers wireless 2-way data communication. The 2-way communication makes it possible to remotely access the sensor and data logger anytime from anywhere.

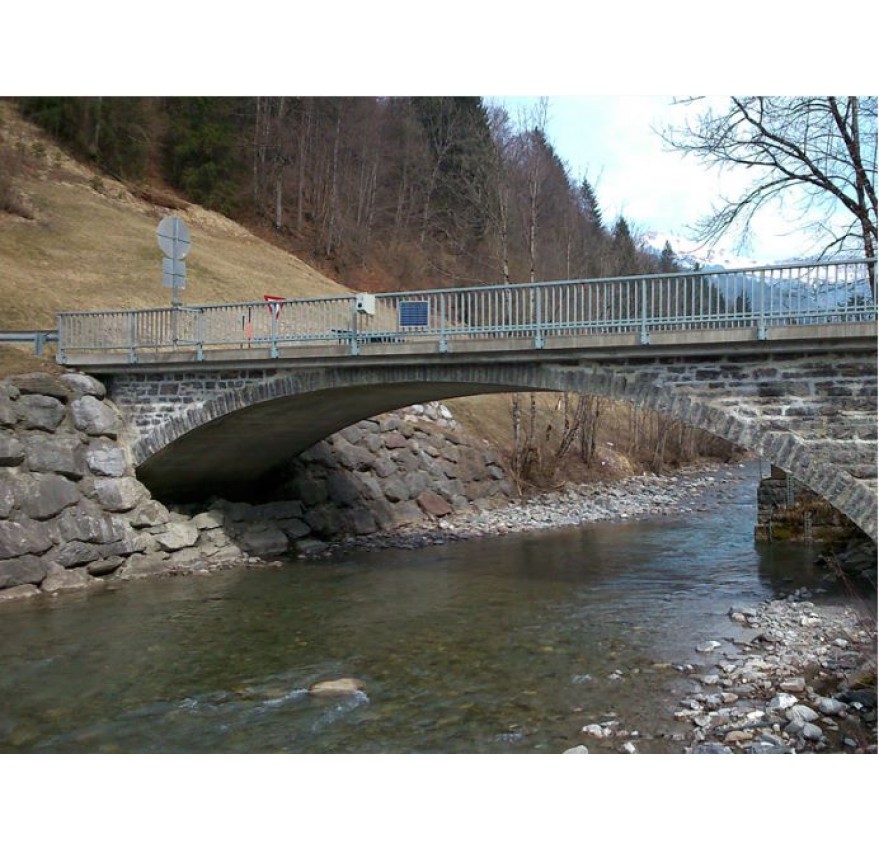

Notifications by E-mail and SMS are a standard feature of the RQ-30 ADMS. Optionally, the RQ-30 ADMS can be equipped with a SOMMER Time laps camera for visual surveillance of the monitoring site.
Spesification
|
General |
|
|
Protection class |
IP 66 |
|
Battery |
24 Ah / 12 V |
|
Recommended solar panel (for mid-latitude) |
20 W |
|
Power consumption |
active operation 150 mA, standby 3 mA (total system) |
|
Operating temperature |
- 20° ... 60° C |
|
Total weight |
19.5 kg |
|
Mischellaneous |
over voltage protection, reverse power protection, lightning protection |
|
WATERLEVEL MEASUREMENT |
|
|
Measuring range |
0 ... 15 m standard version / 0 ... 35 m extended version |
|
Resolution |
1 mm |
|
Accuracy |
+/- 2 mm |
|
Radar frequency |
26 GHz (K-Band) |
|
Radar opening angle |
10° |
|
VELOCITY MEASUREMENT |
|
|
Measuring range |
0.08 ... 16 m/s (depening on flow conditions) |
|
Accuracy |
+/- 0.01 m/s; +/- 1 % FS |
|
Resolution |
1 mm/s |
|
Direction recognition |
+/- |
|
Measurement duration |
5 ... 240 sec. |
|
Measurment interval |
8 sec. ... 5h |
|
Measuring frequency |
24 GHz (K-Band) |
|
Radar opening angle |
12° |
|
Distance to water surface |
0.50 ... 35 m |
|
DATA TRANSMISSION |
|
|
Supported networks |
quad band EGSM 850 / 900 / 1800 / 1900 MHz networks |
|
Transmission power |
class 4 (2W) with 850 / 900 MHz; class 1 (1W) with 1800 / 1900 MHz |
|
2G/3G/4G |
up to 14.4 kbps (transparent) and 9.6 kbps (non-transparent) |
|
Data transfer |
FTP server or HTTP server |
|
MDS server |
package including database, station- /user management and data visualisation via web browser |
|
DATA LOGGER |
|
|
Storage |
up to 500,000 values |
|
Data readout |
remotely |
