Description

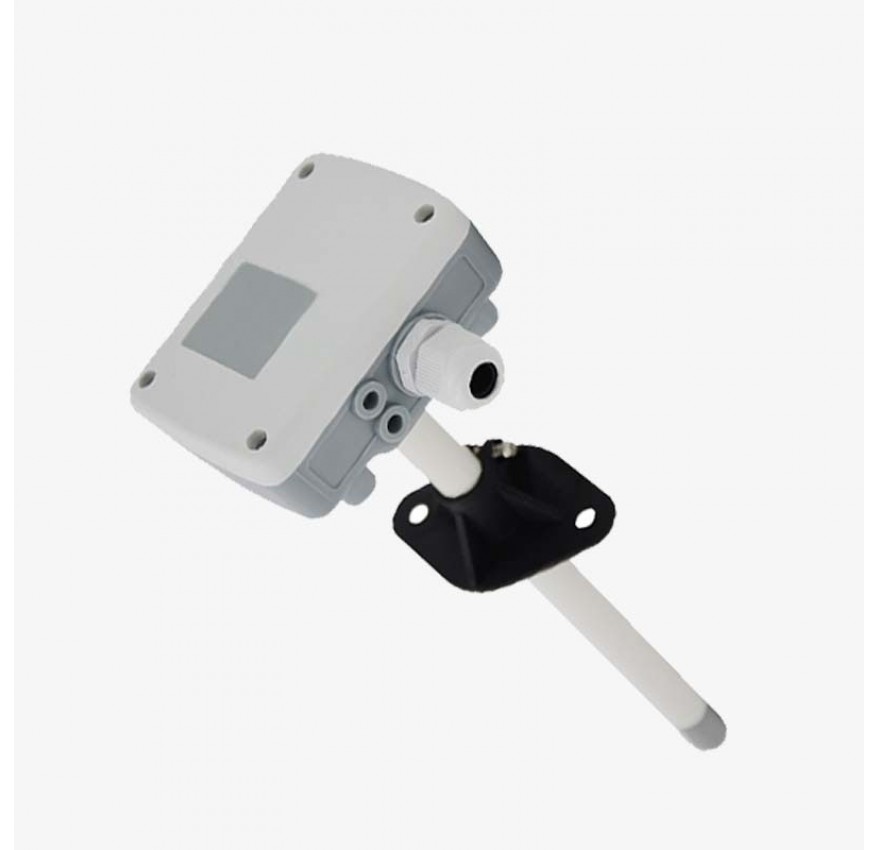

RK100-05 Pipe Wind Speed Sensor is designed on the basis of the principle of hot-wire, the probe and housing adopt resistance to high temperature and anti-corrosion materials . In the bad environment, it also can work stablely and reliably.It can quickly and accurately tiny air flow measurement. The product has realized high precision and high resolution through internal linear compensation and temperature calibration, and long term stability is extremely good, which should be installed directly.
Feature
DIMENSION & MOUNTING
When installing the product, please keep the direction of the arrow on the probe and the direction of the wind.
Spesification
|
Item |
Specification |
|||
|
Output |
4-20mA,0-10V,RS485,0-5V |
|||
|
Supply |
12-24VDC |
|||
|
Range |
0-5m/s,0-10m/s,0-20m/s,0-30m/s |
|||
|
Response time |
<1s |
|||
|
Accuracy(0-50?) |
±0.2%FS |
|||
|
Resolution |
<0.05m/s |
|||
|
Power consumption |
<80mA@24VDC(4-20mA) <60mA@24VDC(RS485,0-5V,0-10V) |
|||
|
Long-term stability |
±0.1m/s per year |
|||
|
Display |
optional |
|||
|
Ingress Protection |
IP55 |
|||
|
Operating Temperature |
-20?-+70? |
|||
|
Main material |
ABS |
|||
|
Probe length |
210mm typ., Other length can be customized |
|||
|
Storage condition |
10?-50?@20%-90%RH |
|||
