Description

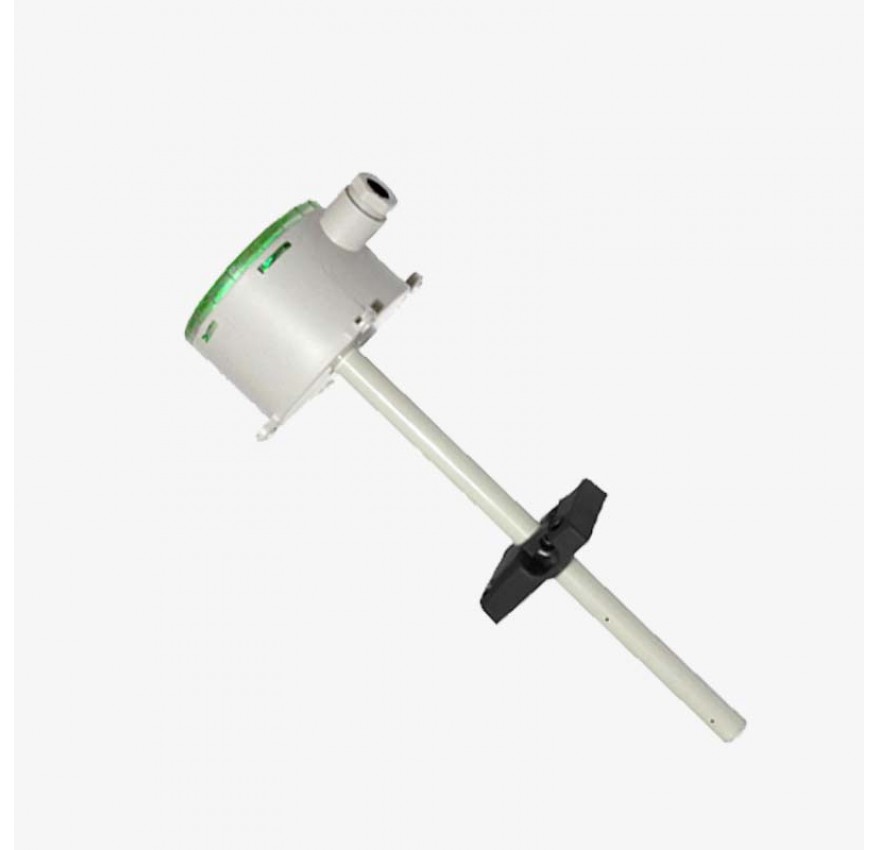

RK100-06 shell is made of flame retardant and corrosion-resistant material. Based on the principle of pitot tube pressure measurement, the gas required for measurement is very little. The performance of RK100-06 shell is equally reliable even in harsh environment with a small amount of dust. The product can obtain higher reliability and repeatability by using digital linear compensation and temperature compensation.
Feature
DIMENSION & MOUNTING
When installing the product, please keep the direction of the arrow on the probe and the direction of the wind.
Spesification
|
Item |
Specification |
|||
|
Range |
0-100Pa,0-250Pa,0-500Pa,0-1000Pa,0-2000Pa,0-5000Pa,0-10000Pa |
|||
|
Supply |
24VDC |
|||
|
Output |
4-20mA,0-10V,RS485 |
|||
|
Response time |
<1s |
|||
|
Accuracy |
±1%FS |
|||
|
Resolution |
1Pa |
|||
|
Power consumption |
<40mA@24VDC(4-20mA) <20mA@24VDC(RS485,0-10V) |
|||
|
Display |
LCD optional |
|||
|
Ingress Protection |
IP65 |
|||
|
Operating Temperature |
-20?-+70? |
|||
|
Main material |
Flame retardant ABS |
|||
|
Probe length |
220mm typ., Other length(<1500mm) can be customized |
|||
|
Storage condition |
10?-60?@20%-90%RH |
|||
