Description

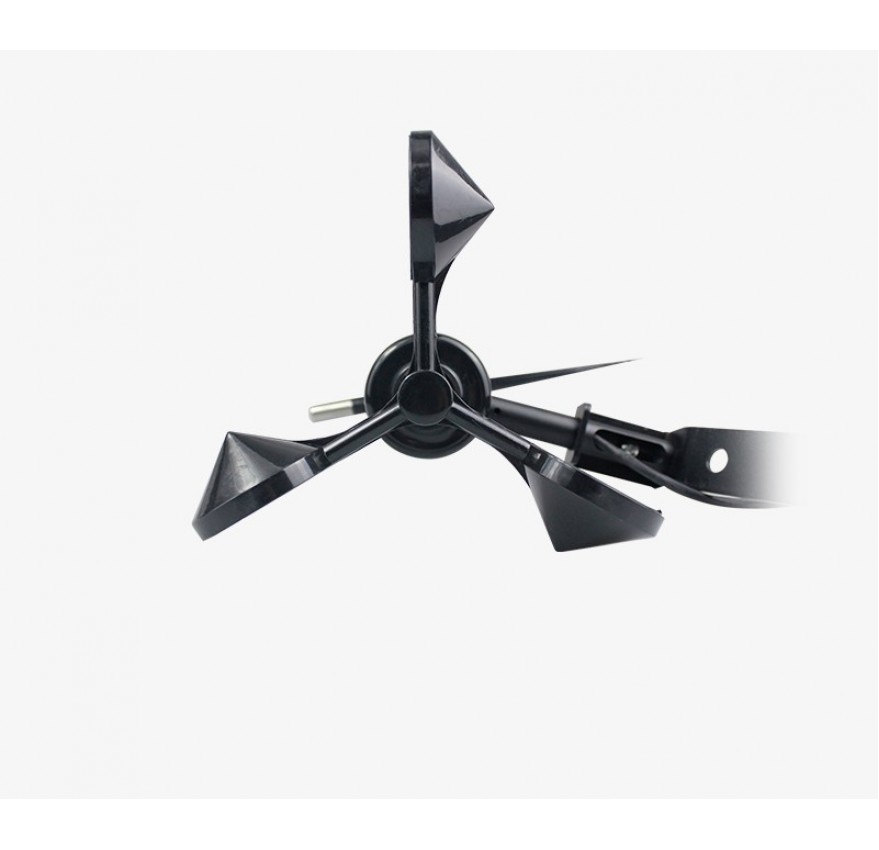

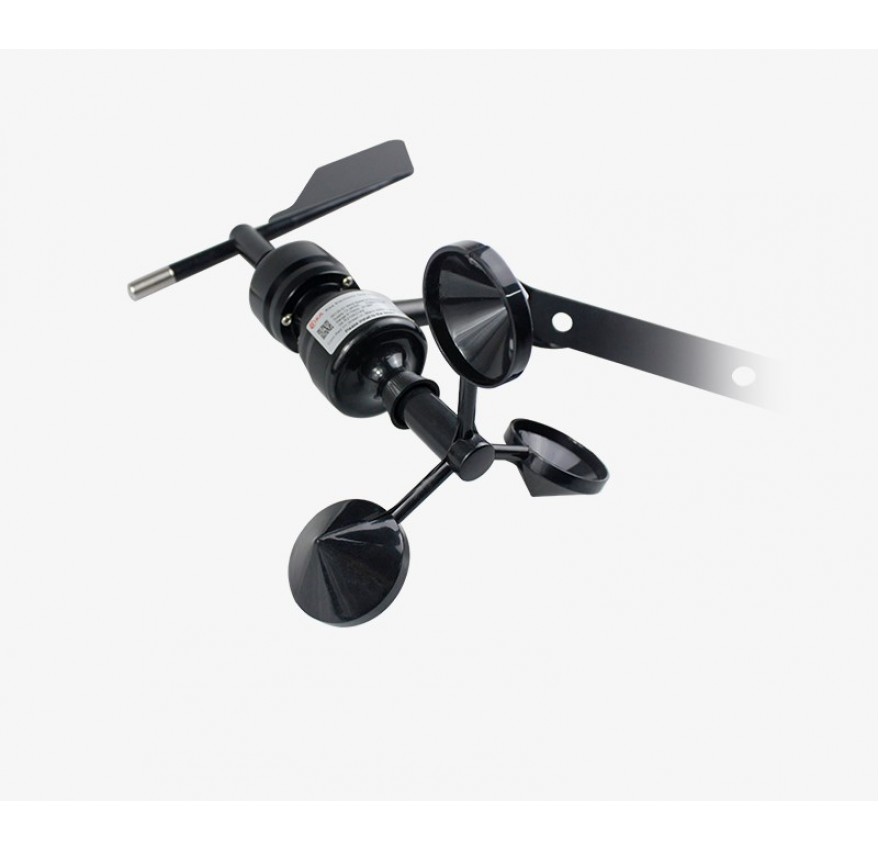

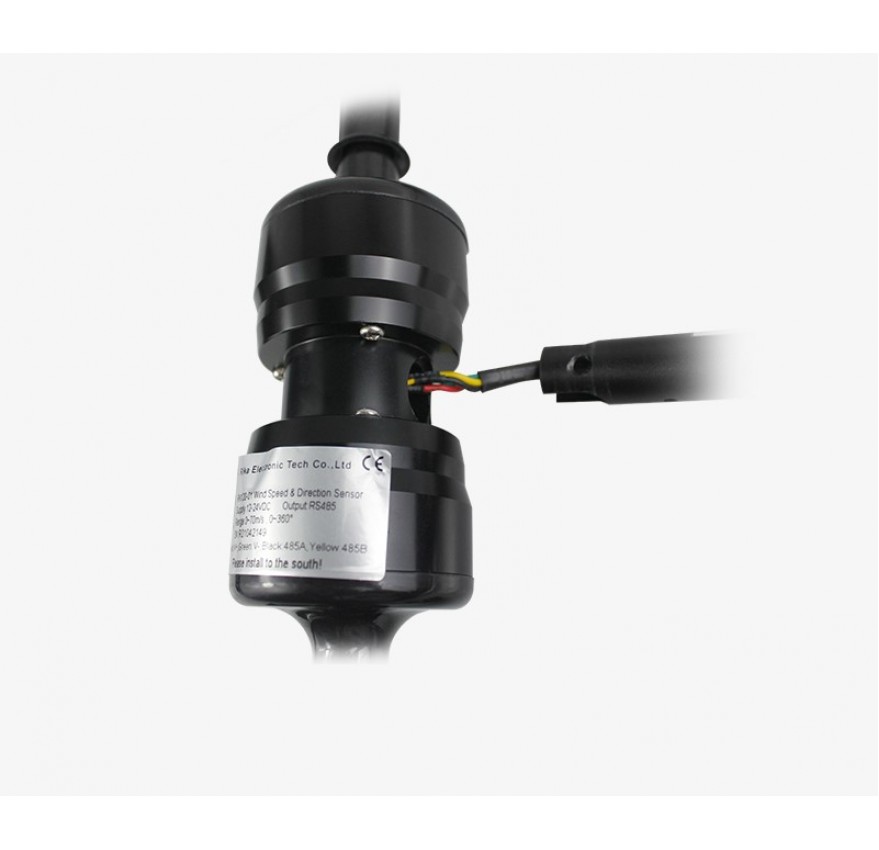

RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable.The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.
Feature
DIMENSION & MOUNTING
PRODUCT DETAILS
Product Principle & Output
Product Material
PRODUCT MOUNTING
Spesification
|
Item |
Technical Specification |
|
|
|
Wind speed |
Wind direction |
|
Range |
0-45m/s(current or voltage ouput); 0-70m/s(pulse,RS485,RS232 output) |
0-360° |
|
Resolution |
0.1m/s |
1° |
|
Accuracy |
±(0.3+0.03V)m/s ,V is current wind speed |
≤±3° |
|
Acquisition Cycle |
3s |
|
|
Starting wind speed |
0.5m/s |
|
|
Limited wind speed |
75m/s |
|
|
Supply |
5V(only for digital output),12-24VDC |
|
|
Output Signal |
RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed) |
|
|
Operating Temperature |
-40?-+70? |
|
|
Ingress Protection |
IP65 |
|
|
Main material |
Aluminum alloy and carbon fiber Cups:PA, reinforced with carbon fibre, black Vane:PA, reinforced with fiberglass, white |
|
| Storage | 10-60?@20%-90%RH | |
| Cable length | Default 2.5m,other length is optional | |
| Installation bracket | attached | |
| Weight(unpacked) | 700g | |
