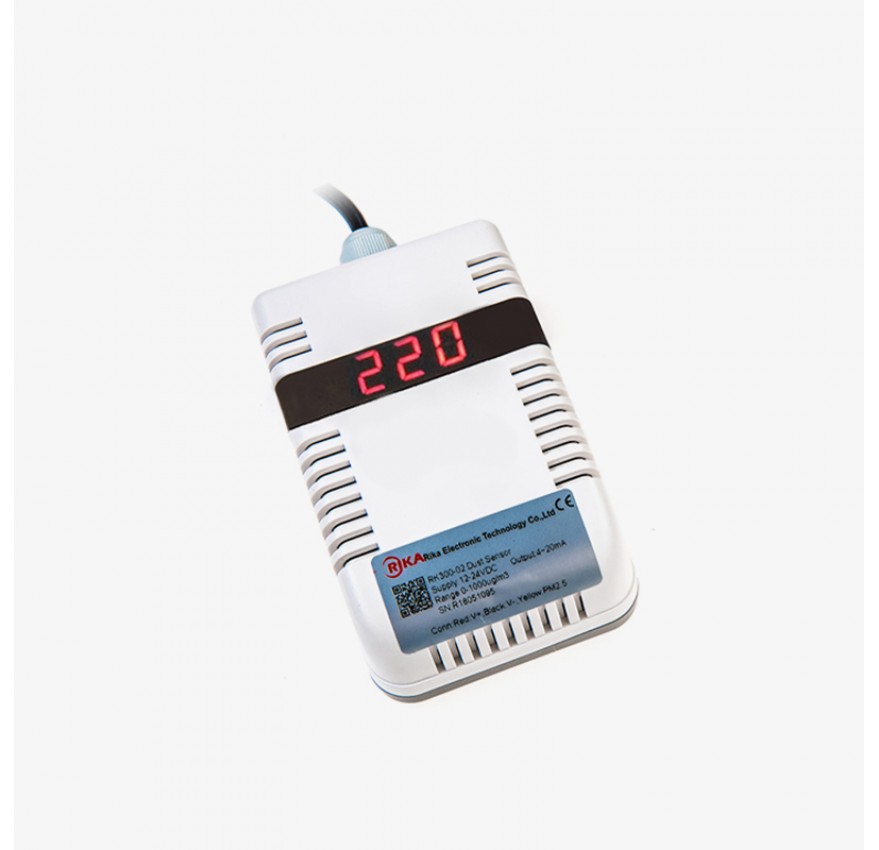

RK300-02A Indoor Dust Sensor, PM1.0 PM2.5 PM10 Sensor

Hubungi Kami




Description

RK300-02 Dust Sensor using laser scattering principle, detecting the existence of dust particle concentration in the air, the minimum can detect 1.0um particles, has a good consistency and stability.According to different usage environment ,there are indoor type and outdoor type to select.


Feature

DIMENSION & MOUNTING

Indoor (Wall-mounted installation)

Outdoor



PRODUCT DETAILS

product-Rika Sensors-RK300-02A Indoor Dust Sensor, PM10 PM25 PM10 Sensor-img-5Product Principle

product-Rika Sensors-img-6 Suitable For Harsh Environment

product-Rika Sensors-img-6Multiple Range & Output Optional

product-Rika Sensors-RK300-02A Indoor Dust Sensor, PM10 PM25 PM10 Sensor-img-6Material & LED Display


Spesification

Item

Technical Specification

Sampling object

PM1.0, PM2.5, PM10 Concentration

Range

0-1000ug/m3

Accuracy

±3%FS@25?

Supply

5VDC,12-24VDC

Output

4-20mA,0-5V,0-10V,RS485

Power Consumption

<50mA@24V(4-20mA)

Warm Up Time

3min

Response Time

<90s

Temperature Drift

≤0.2%FS/?

Stability

<±2%fs

Repeatability

<±1%fs

Operating Temperature

-20?-+50?@15-80%RH

Storage

-40-60?@20%-90%RH

Shell material

ABS
