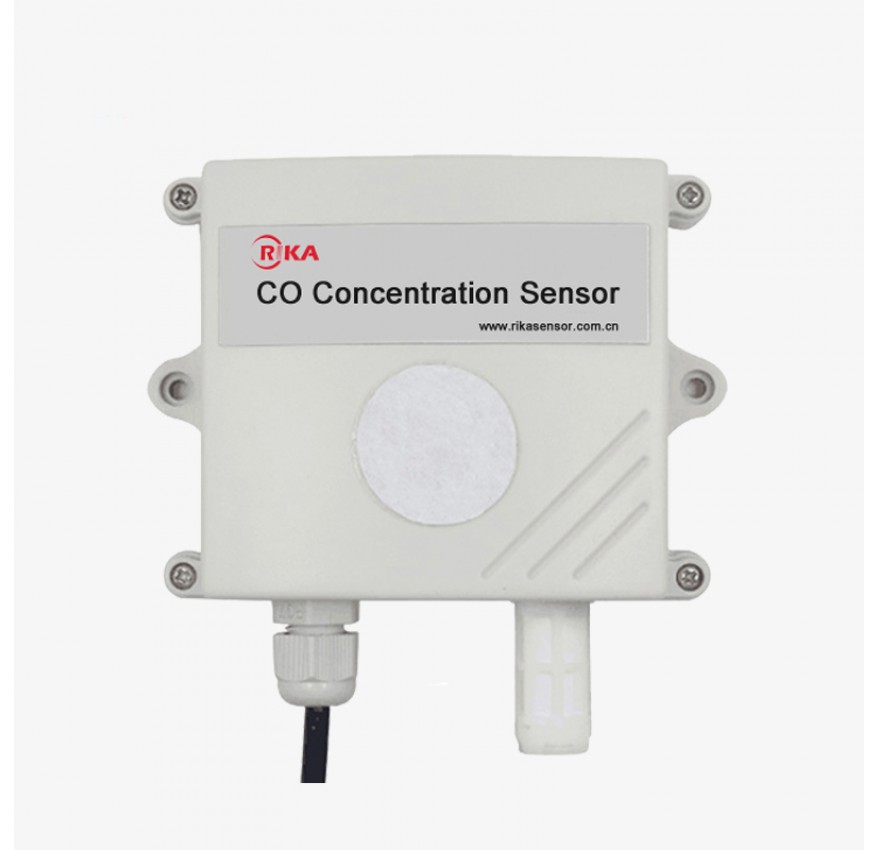

RK300-11 CO Concentration Sensor

Hubungi Kami




Description

The product uses electro-chemical technology to measure CO concentration, which is fast and sensitive. It is widely used in air quality detection, smart home and other occasions where CO detection is needed. The shell has high protection level and can adapt to various harsh conditions on site.


Spesification

Item

Technical Specification

Range(CO concentration)

0-2000ppm

Range(temperature )

-40-+80? only for digital output

Range(humidity )

0-100% only for digital output

Accuracy(CO concentration)

≤0.02%FS/?

Resolution(CO concentration)

0.1ppm

Supply

12-24VDC

Output

4-20mA,0-5V,0-10V,RS485

Power Consumption

<0.25W

Warm Up Time

3min

Response Time

<2s

Repeatability

<±10%FS

Operating Temperature

-20?-+60?@15-80%RH

Storage

-40-70?@20%-90%RH

Shell Material

ABS

Installation

Wall-mounted

Zero drift

<10ppm

Dimension

110*85*44mm
