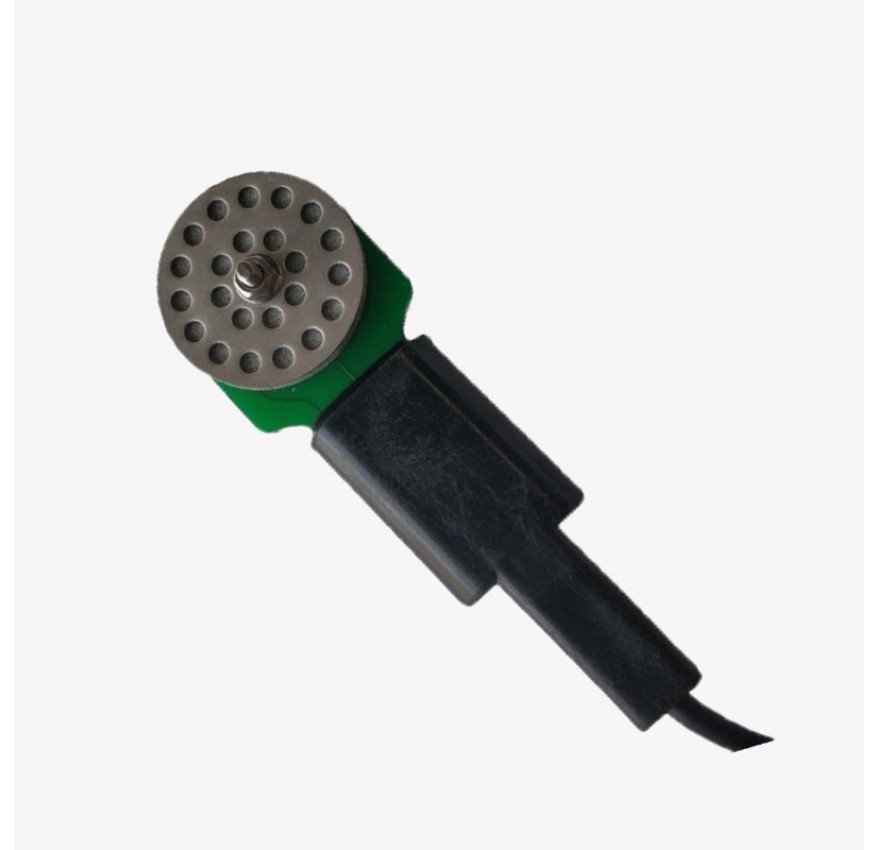

RK500-05 Soil Water Potential Sensor

Hubungi Kami




Description

Soil water potential is the amount of energy required to extract a unit of water from the soil at the same temperature in kilopascals (kPa).When the soil moisture is saturated, the water potential is zero.The water content is lower than the saturation state, and the water potential is negative. The more arid the soil is, the greater the negative value will be.In the study of plant water demand, soil water content cannot reflect the availability of plants, and soil water potential is the only index to judge the degree of drought.


Spesification

Item

Technical Specification

Range

-10?-500kPa

Supply

 2.5VDC

Accuracy

±25%?-5?-100kPa??±35%?-100?-300kPa??±50%?-300?-500kPa?

Resolution

0.1kPa

Element

Ceramic
Response Time 10ms

Output Signal

500?1000 mV?Output in air is about 550mV?

Operating Temperature

-40?-+70?

Dimension

90.5 × 30.7 × 11mm
Storage



10-60?@20%-90%RH
Weight(unpacked) 155g
