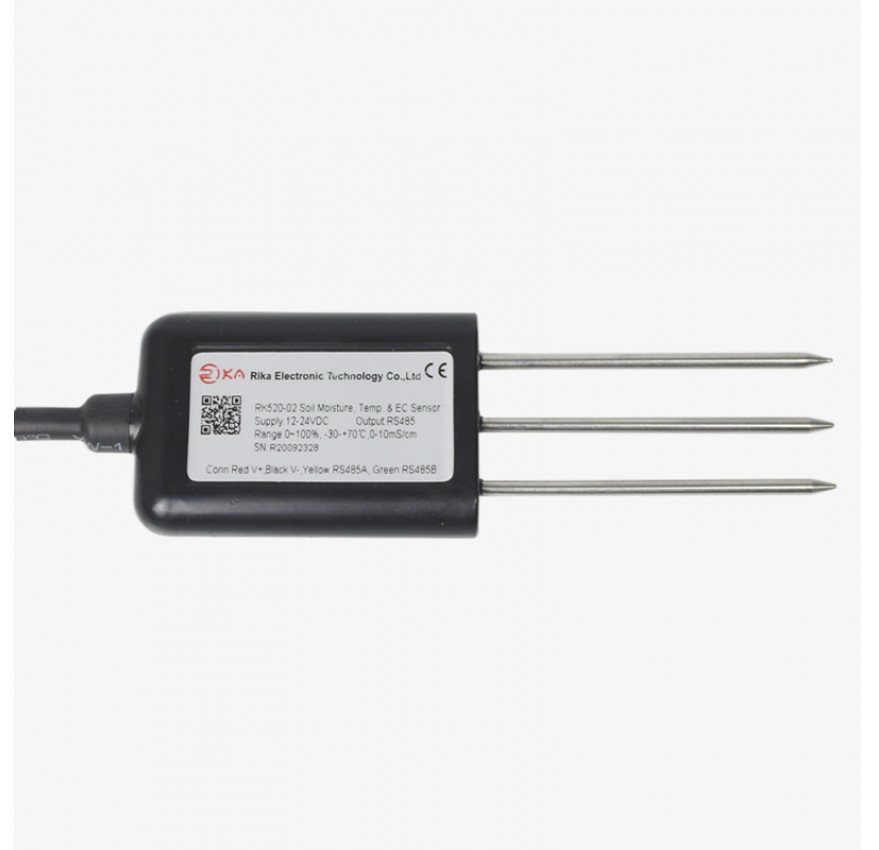

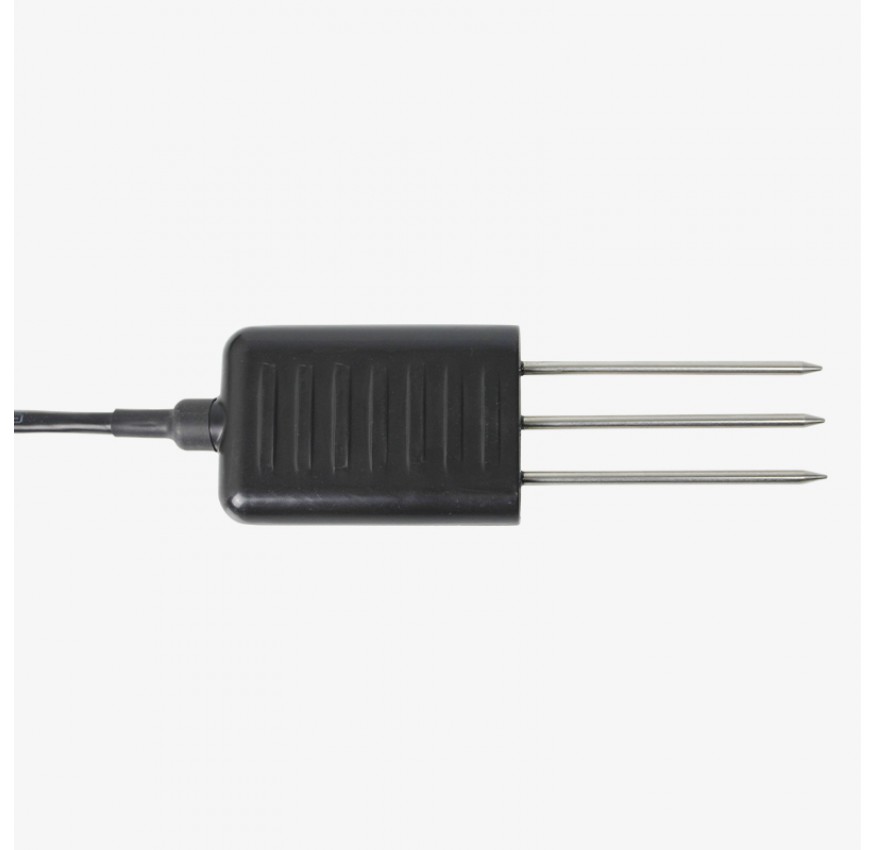

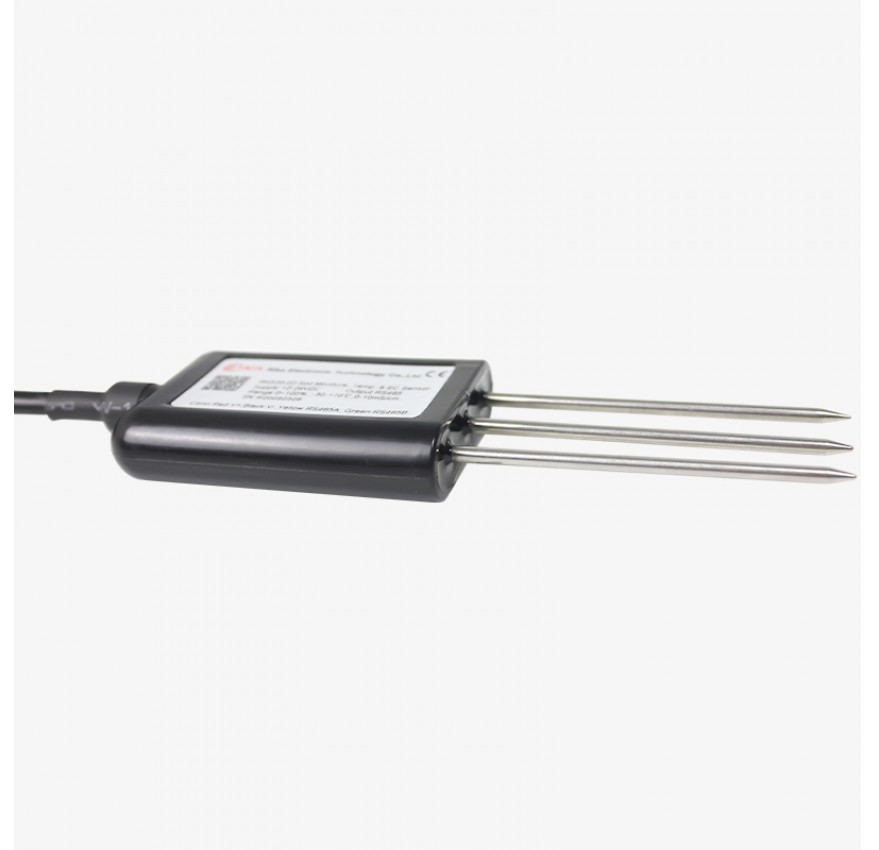

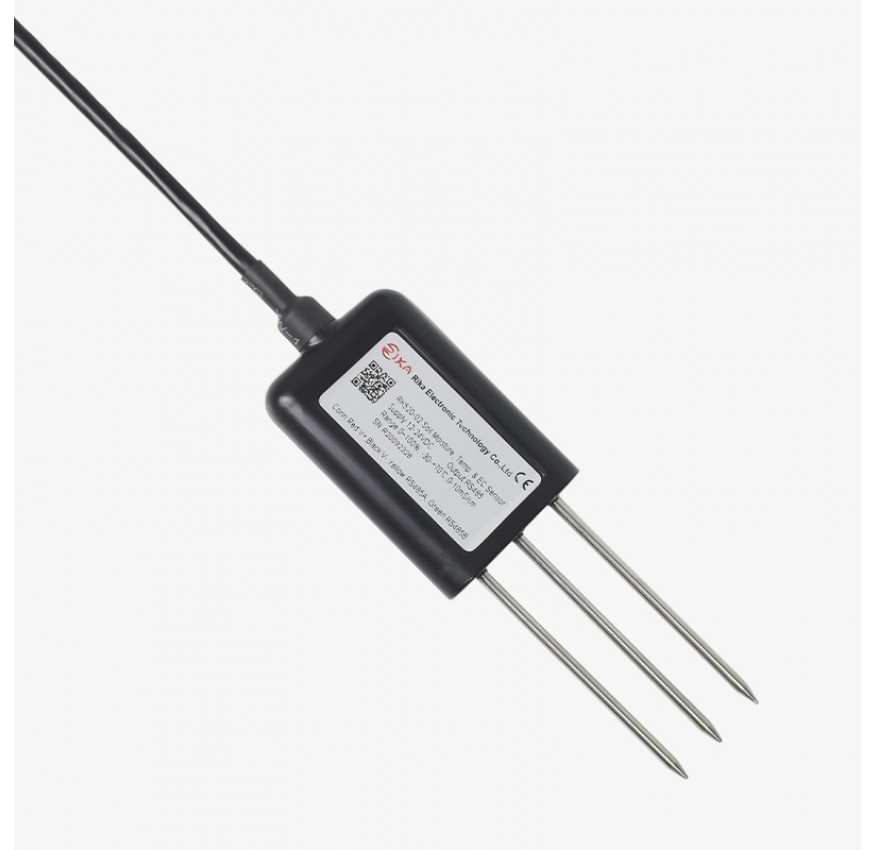

RK520-02 Soil Moisture Sensor, Temperature Probe& EC Sensor

Hubungi Kami




Description

RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.


Feature

WORKING PROCESS & DIMENSION

PRODUCT DETAILS


Spesification

Item

Technical Specification

Moisture

Temperature

EC

Range

0-100%?m3/m3?

-30?-+70?

0-10mS/cm

Accuracy

 ±2%(0-50%)

±3%(51-100%)

±0.5?

±3%FS

Output Signal

RS485,0-2V

Response Time

<1s

Supply

5VDC, 12-24VDC

Effective measurement area

With the center of the probe diameter is 70mm, high 70mm cylinder

Housing

ABS

Dimensions

45*15*145mm( probe:3* Ø3*70mm)

Operating Temperature

-40?-+80?

Ingress Protection

IP68

Storage

10-60?@20%-90%RH

Probe material

316L  stainless steel
