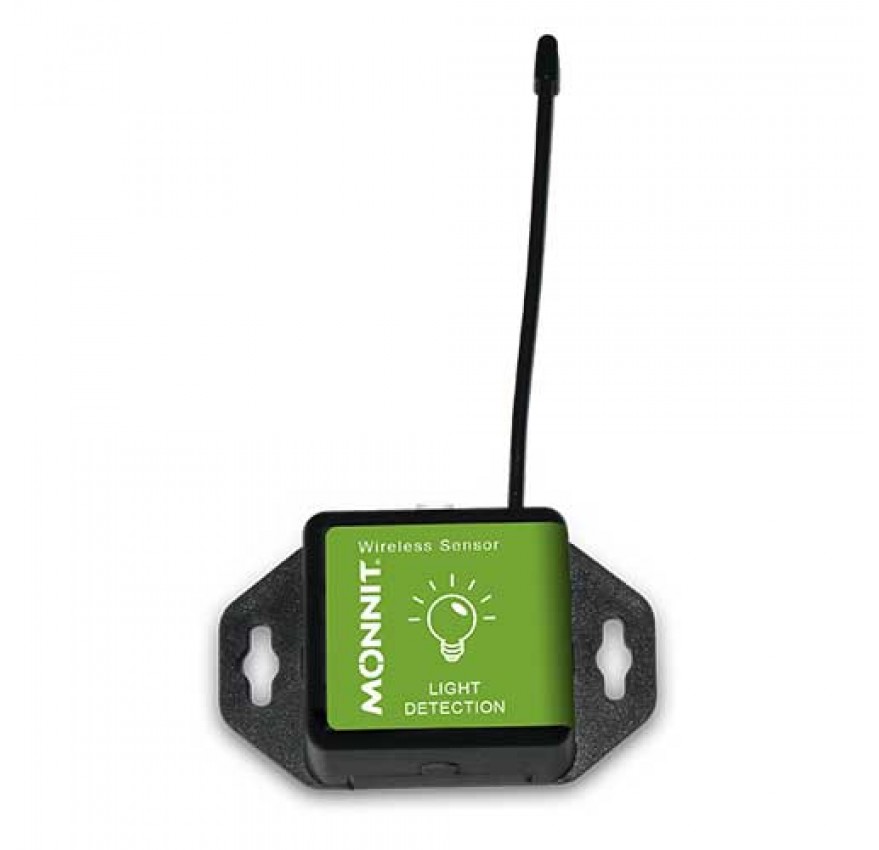

Wireless Light Detection Sensor-Monnit





Inquiry

Description

Product Description

Monnit wireless light detection sensors can be used to detect whether light is present or not. The sensors can be user calibrated for baselines of light and dark, and will provide a status of light presence based on those baselines. Alerts can then be setup for when light has been detected or when there is no light detected.




Suggested Application Uses for This Sensor

  • Commercial property light and electricity management
  • Monitor apartment property common area lights
  • Monitor for blown lights in parking lots or garages lights
  • Monitor for blown lights on walkways or public areas




Spesification

Phototransistor Specifications



Angle of Half Sensitivity    ? = ± 50°
Maximum Light Current   0 - 1,000 Lux
Weight   0.7





Coin Cell Specifications



Battery Type Replaceable 3.0V Coin Cell Battery
Dimension 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature -20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell) +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. **
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS



900 MHz Specifications



Operating Frequency                                             900 MHz Operating Frequency
Certifications  Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)







wireless light detection sensor
