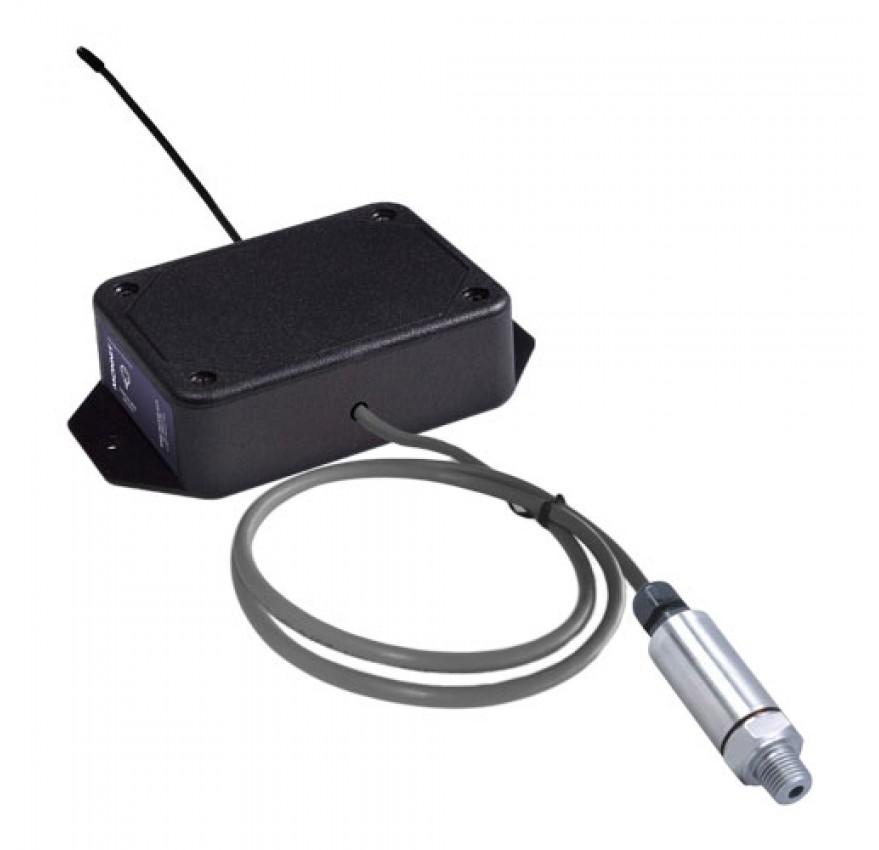

Wireless Plessure Meter-Monnit

Wireless Plessure Meter-Monnit



Inquiry

Description

Product Description

Monnit wireless pressure meters measure pressure and transmit the pressure measurement to iMonnit. By connecting the Monnit wireless pressure meter to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.





Suggested Application Uses for This Sensor

  • Compressed air supply lines
  • Water supply lines
  • Gas supply lines
  • Pumping systems
  • Irrigation system pressure
  • Industrial process monitoring
  • Trash compaction equipment

Spesification



Pressure Transducer Specifications

Operating Temperature 0 to 175°F (-18 to 79°C)
Thermal Effect on Reading ±0.02% FS/°F. (includes zero and span).
Media Gas, Liquid or Vapor
Response Time 50 msec.
Stability 1.0% FS/year (Typ.
Wire Length 1 Meter shielded cable (between gauge and wireless unit)
Maximum Rated Input Voltage 5.5 V
Voltage Range 0 - 5.2 V
Voltage Resolution ~3 mV
Weight 10.3 oz





AA Specifications



Battery Type   2 Replaceable AA 1.5 V Batteries
Dimension  4.375 in x 2.470 in x 1.12 in
Sensing Element  2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years.
Max Operating Temperature Using AA Alkaline -18°C to 55°C (0°F to 130°F)
Max Operating Temperature Using AA Lithium -40°C to 60°C (-40°F to 140°F)
Optimal Battery Operating Temperature +10°C to +50°C (+50°F to +122°F)
Enclosure Material ABS





900 MHz Specifications



Operating Frequency                 900 MHz Operating Frequency
Certifications   Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)
