Description
Product Description

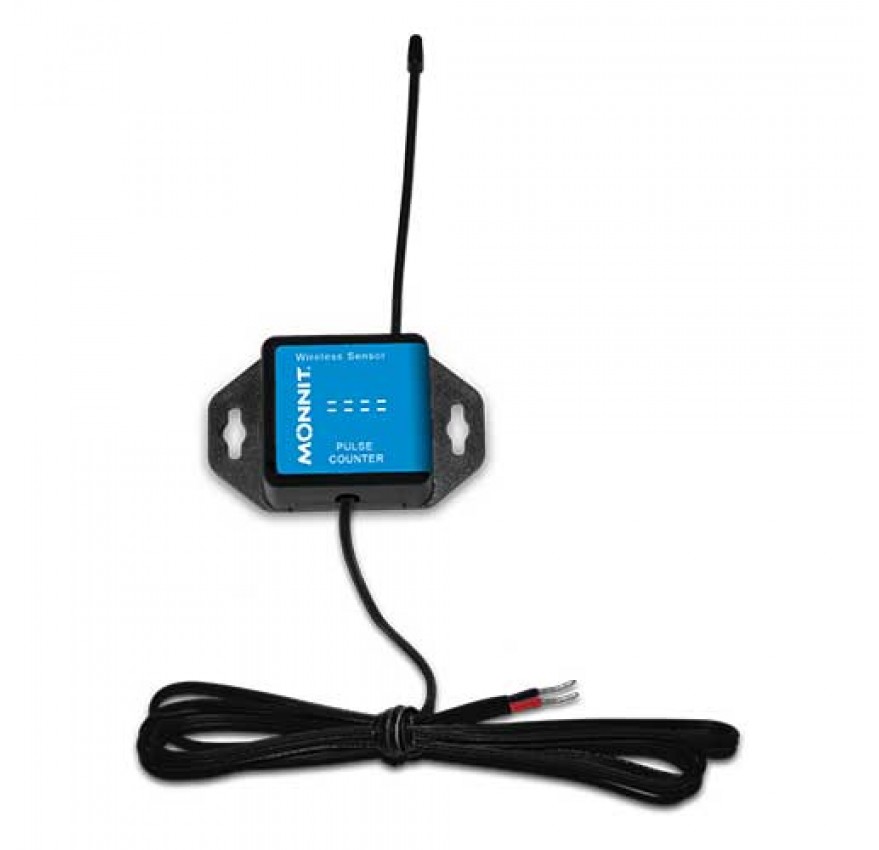

Monnit wireless pulse counters can be integrated with up to four, dry contact or mechanical switch and closure devices to count the number of actuations occurring within a given time frame for each input.
Suggested Application Uses for This Sensor
- Turn Style Counter
- Count number of actuations
Spesification
Pulse Counter Specifications
| Maximum Count | 4294967296 (32 bit number) |
| Input Voltage | 0 to 15 Volts DC |
| Detection Wires | High Impedance (2-Wire), 3 ft. length |
| Counter Operation | Positive and / or Negative Edge Pulses |
| Compatibility | Open Collector NPN Switches (Passive) Mechanical Switches (Passive) 0-15V Driven Source (Active) |
| Weight | 1.0 oz. |
Variation Specifications
| Weight | 0.7 oz |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F) |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. ** |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1 |
